Channels

Channels act as message conduits. They are responsible for the messages exchange between clients and act as message topics that can be published or subscribed to by multiple Clients.

Clients are able to publish or subscribe to a channel depending on their connection.

Create a Channel

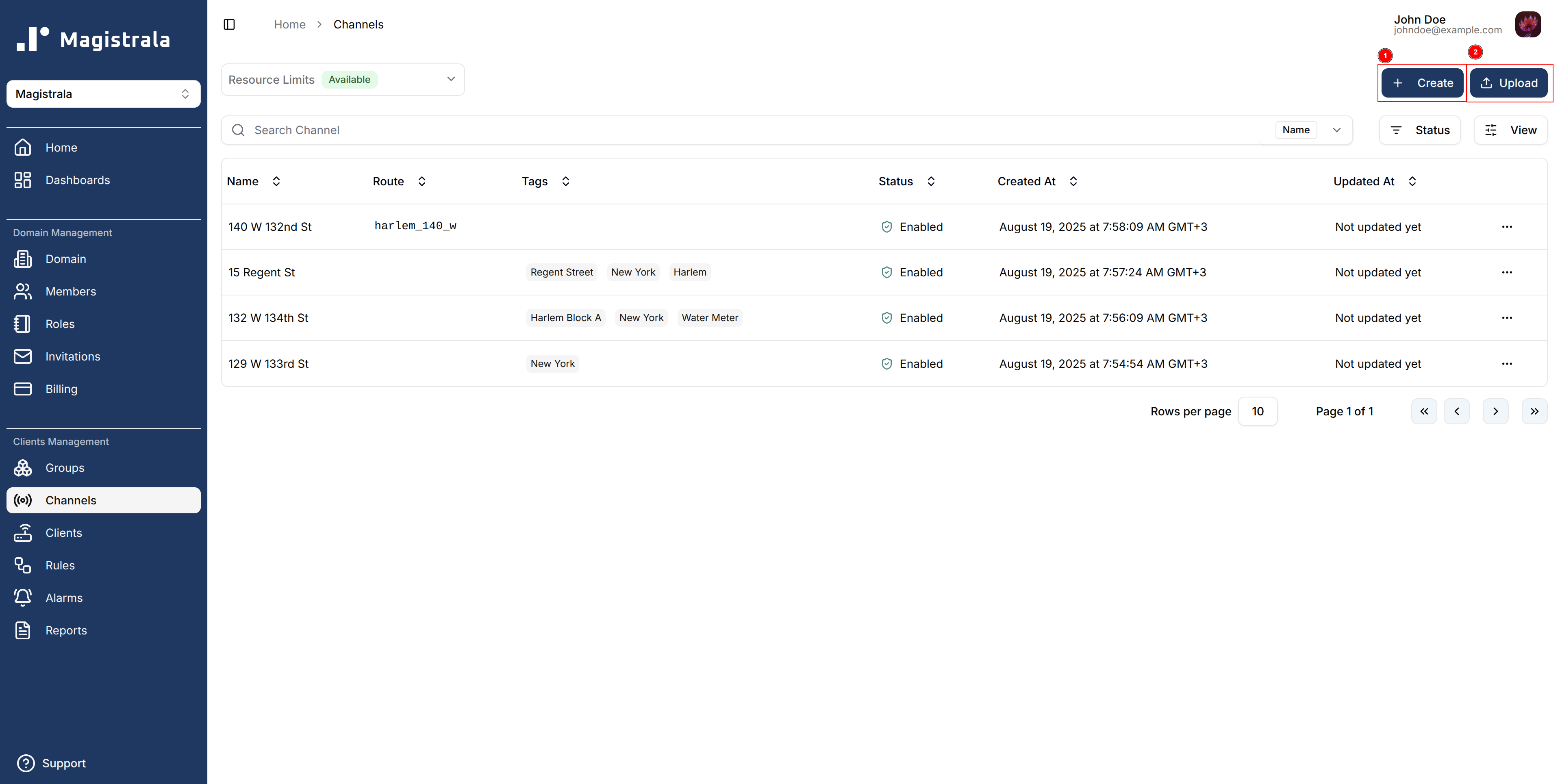

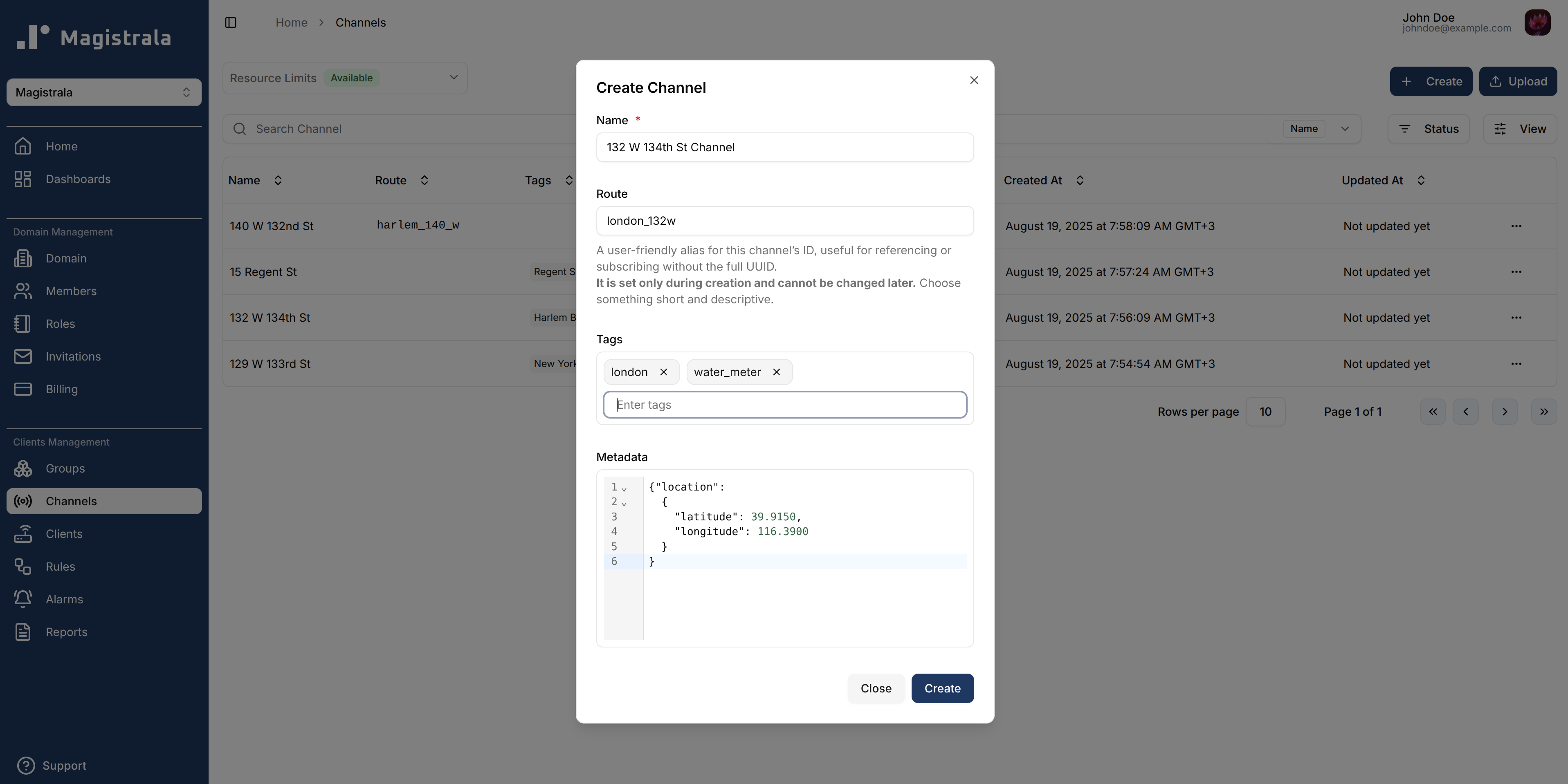

To create a channel, click on the + Create button present on the top-left corner of the page. You can also create multiple channels by clicking on the + Upload button and uploading a .csv file.

Channel Information

Add a channel name and optionally tags and metadata.

Bulk Creation

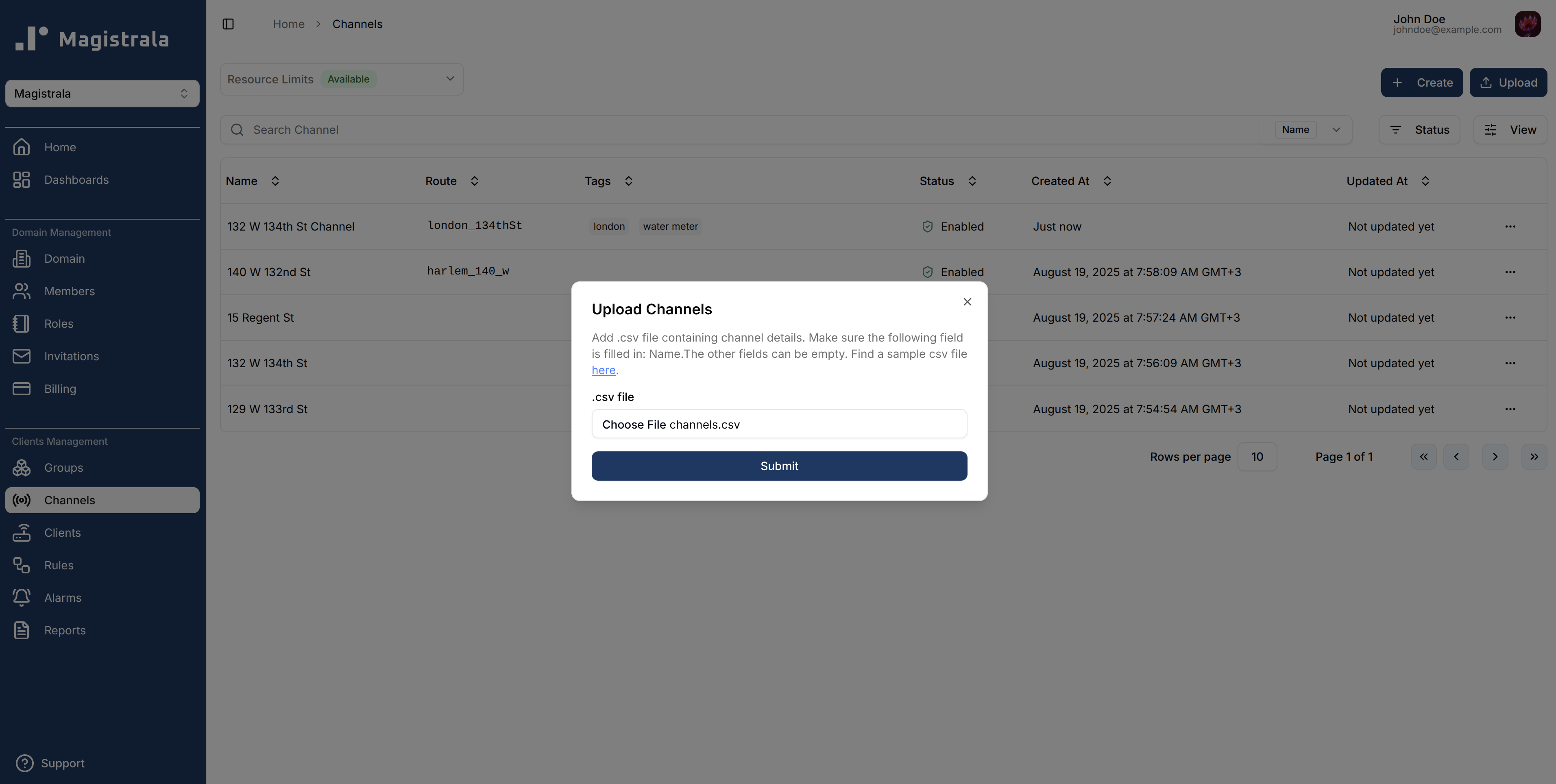

You can be able to create channels in bulk by uploading a .csv file with the following fields in order:

1. Name (Required)
2. Metadata
3. Tags

A sample channels CSV file is available.

View a Channel

After creating a channel, it will appear in the channels table. To view that channel click on the row or the view button in the row actions.

The channel page has two tabs: Settings and Metadata.

Settings Tab

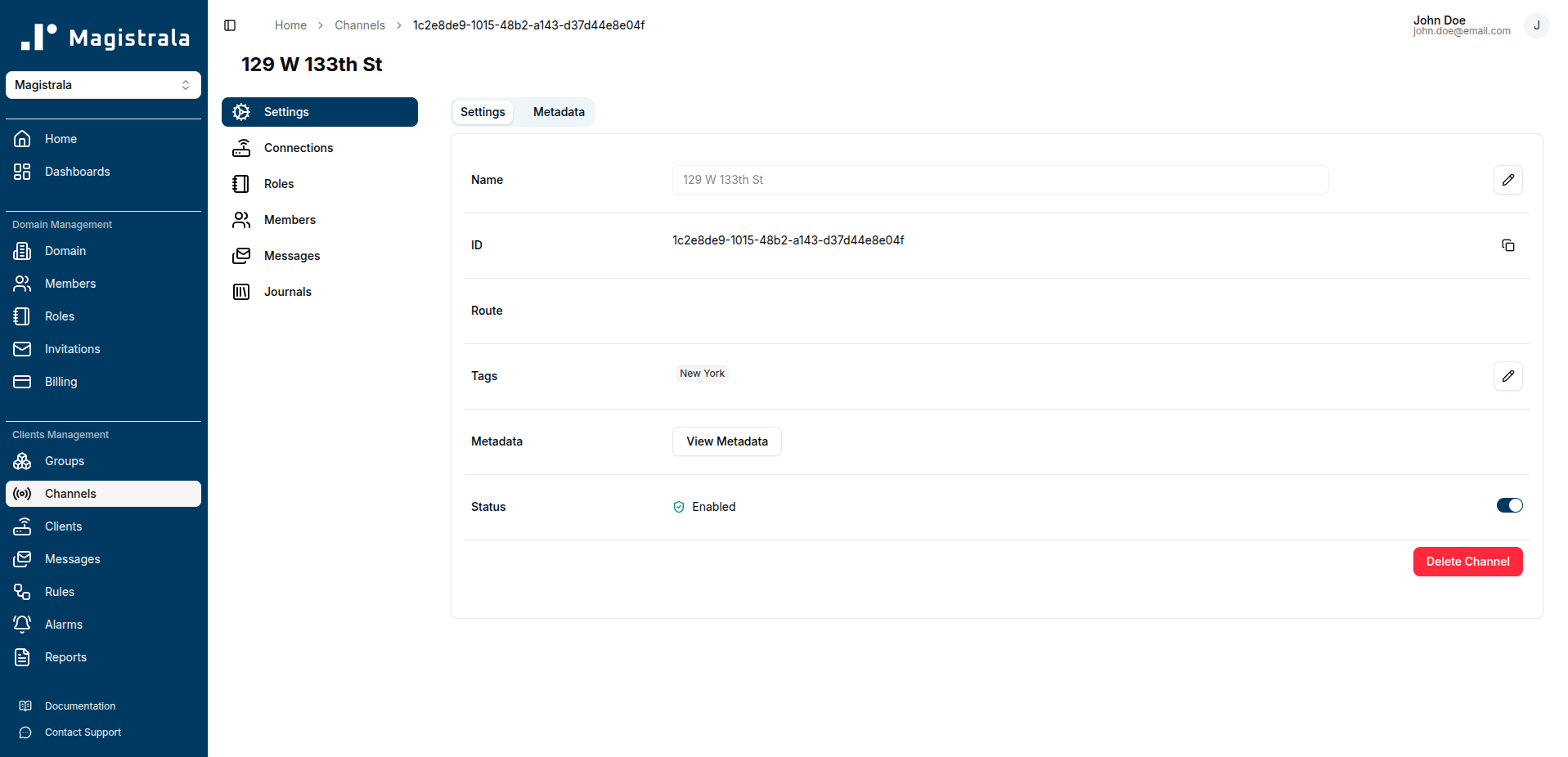

The Settings tab displays key details about a channel and allows you to edit core properties:

Editable Fields:

• Name – Channel identifier
• Tags – Keywords for organization and searchability
• Status – Enable or disable the channel using the toggle switch

View-Only Fields:

• ID – Unique channel identifier
• Metadata – View existing metadata in JSON format (managed in the Metadata tab)

To update a field, click the pencil icon next to it. Once you have updated the value, click the check icon to save changes or the cross icon to cancel.

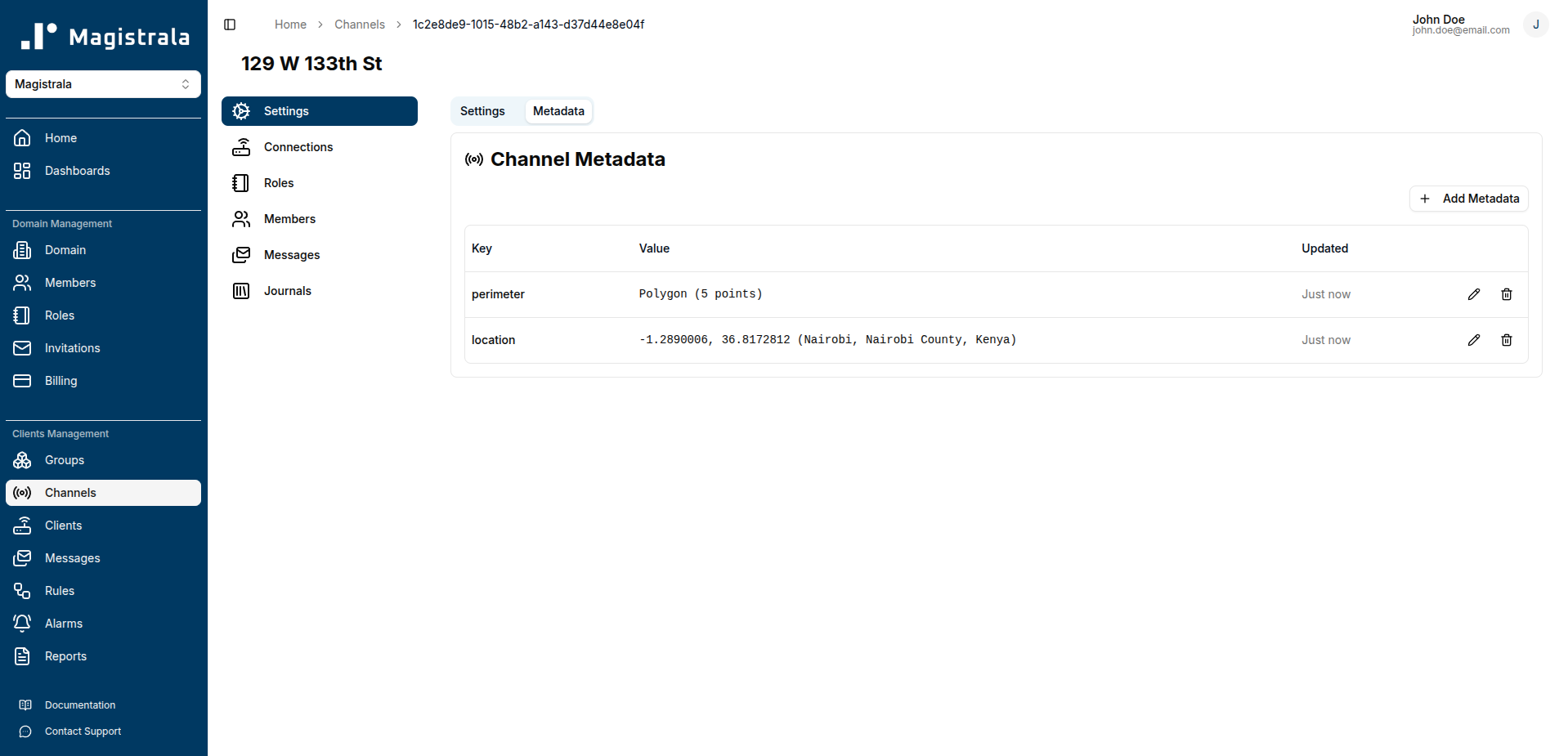

Metadata Tab

The Metadata tab allows you to add, view, and manage additional information for the channel. Metadata supports various value types including text, numbers, booleans, JSON objects, locations, and perimeters.

For detailed instructions on managing metadata, including working with interactive maps for location and perimeter data, see the Metadata Management Guide.

Connect to a Client

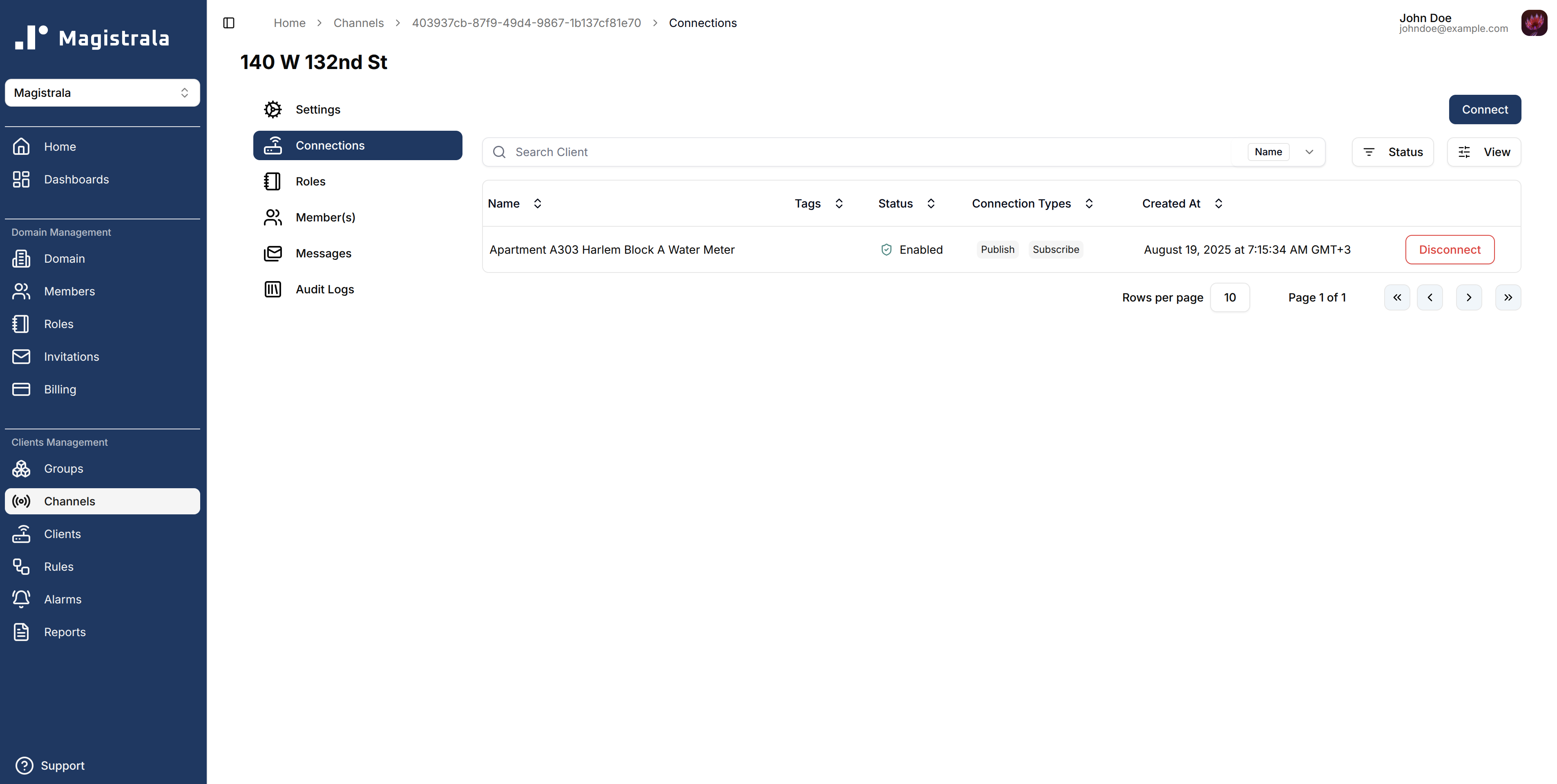

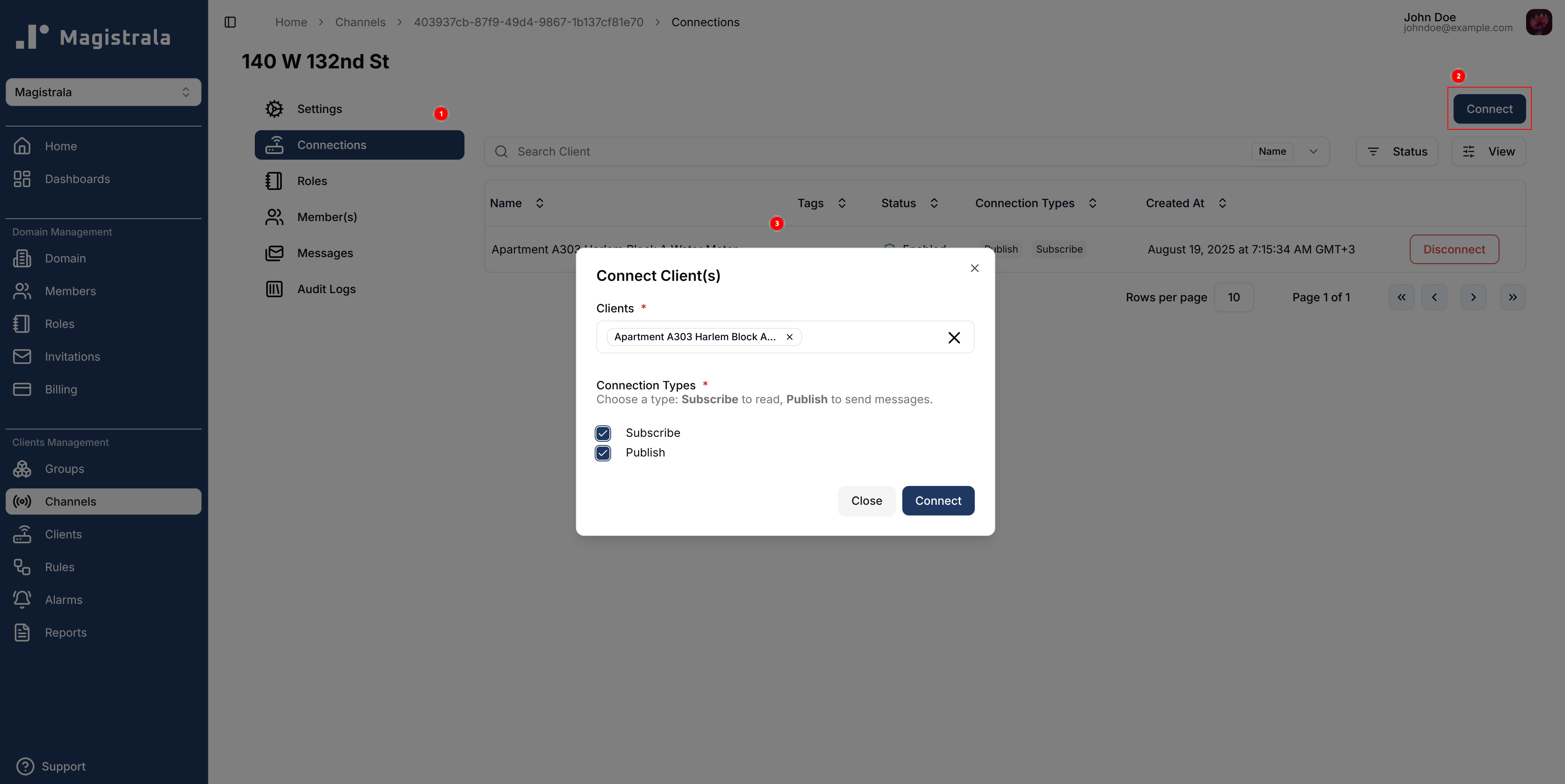

Navigate to the Connections tab on the channel sidebar. This will lead you to the connections page where you can view the clients connected to a channel.

In this page you are able to add a connection by clicking on the Connect button on the top right corner.

A dialog will open where you can select clients and connection types. A client can have both connection types selected.
There are two connection type options:

1. Publish: allows the client to send messages in the channel
2. Subscribe: allows the client to read messages in the channel

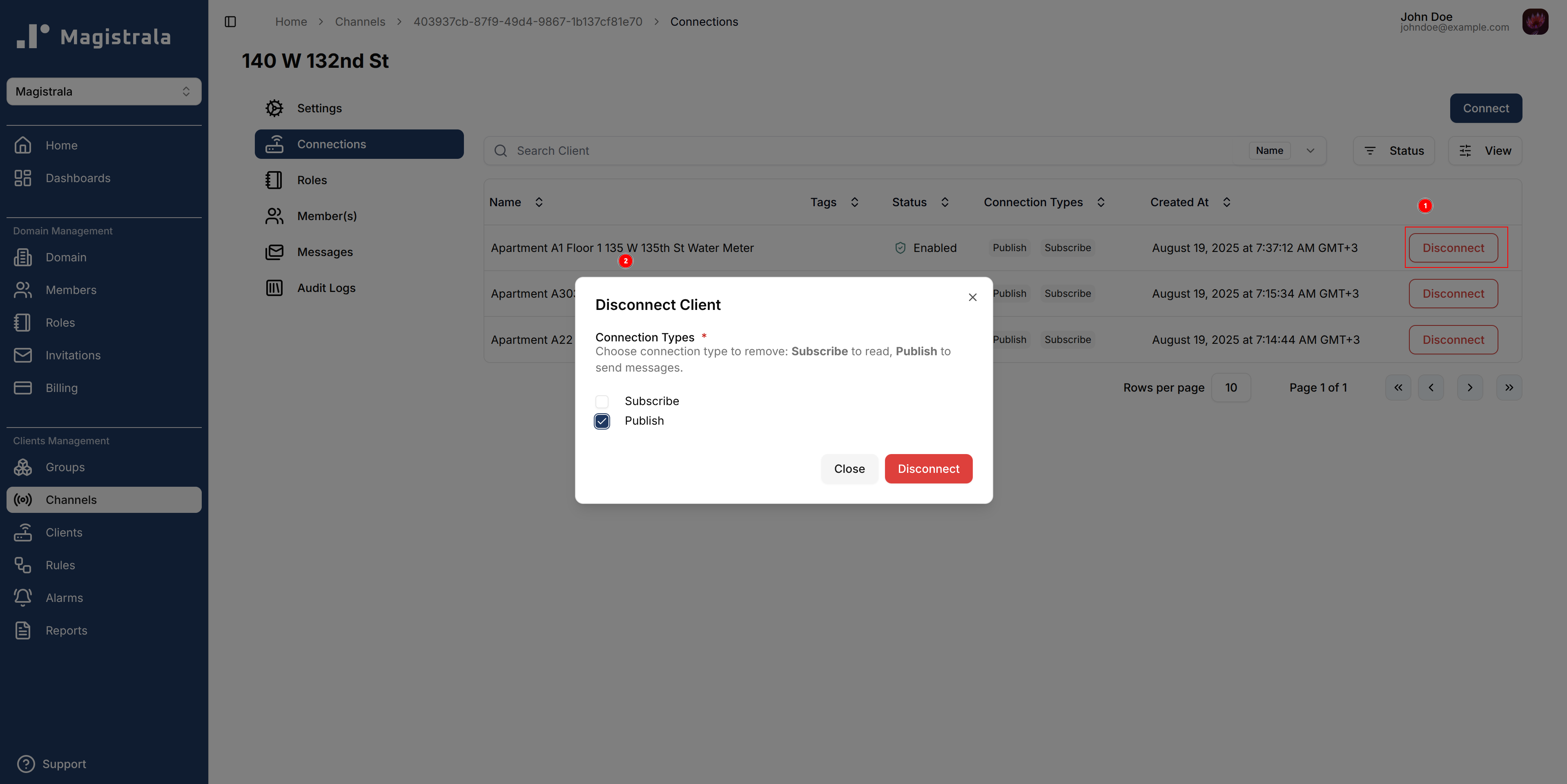

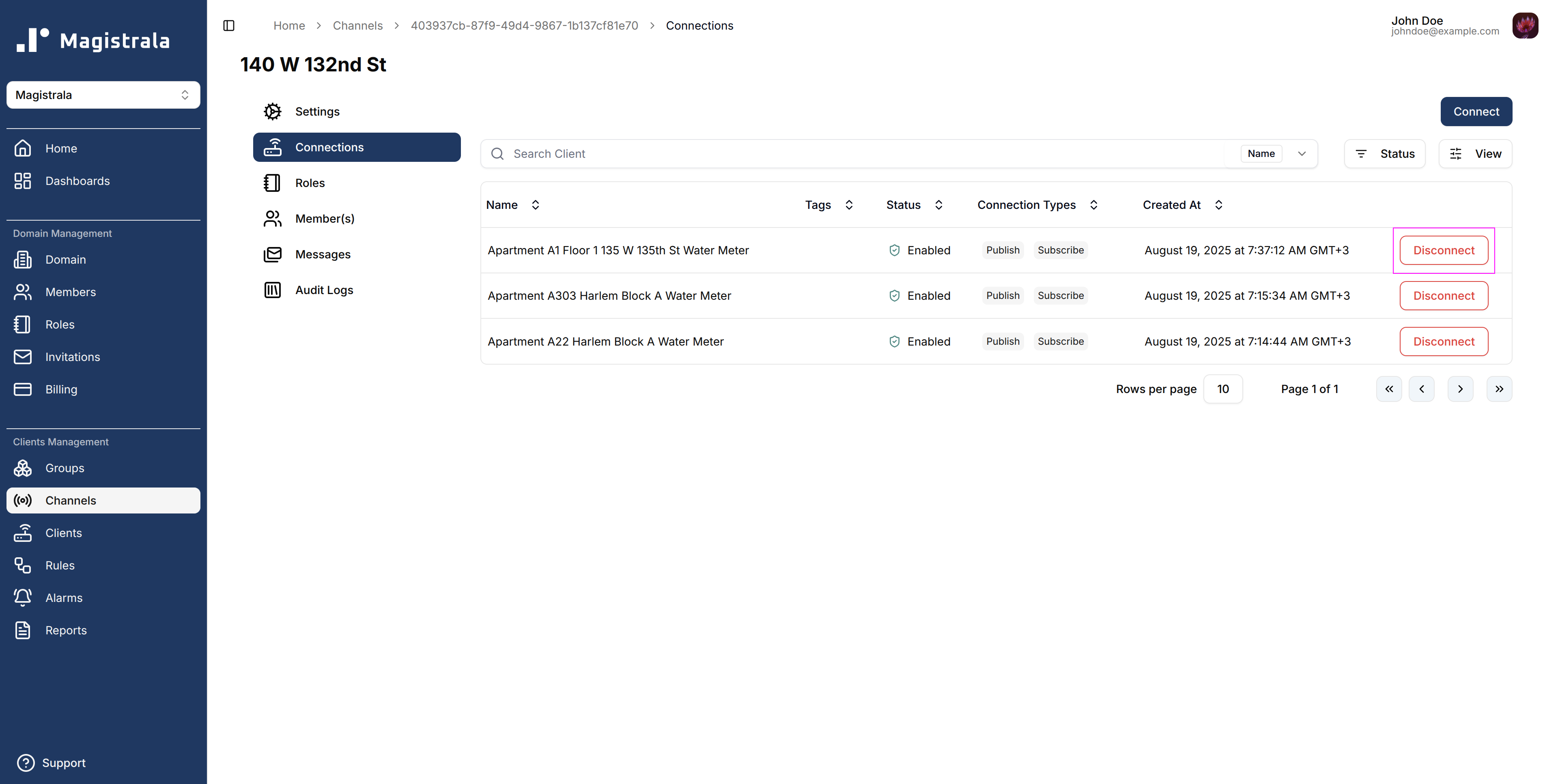

To disconnect the client, click on the Disconnect button at the end of the channel row.

This will open up a dialog that allows you to select which connection type you want to remove. You can remove one or both of the connection types if there are multiple.

Channel Roles

Roles define a set of actions that can be allocated to users.

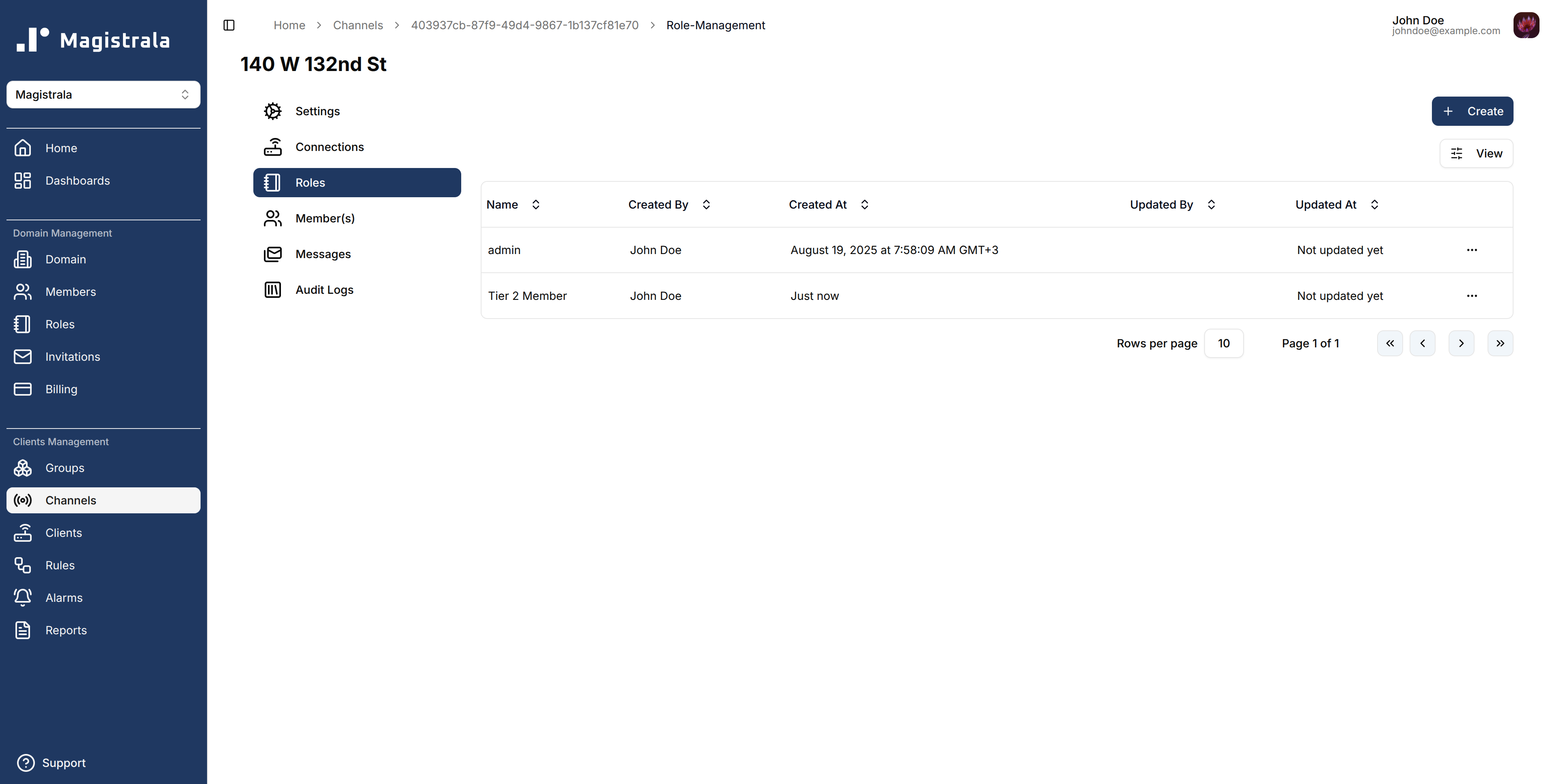

Navigate to the Roles tab of the channel sidebar. This will lead you to a table of all the available roles in the channel.

To create a role, navigate to the roles section on the client navbar. Click on the + Create button and provide a role name. The actions and members are optional fields.

Channel Role Information

The Role Name is compulsory. You can provide the role actions by selecting from the available actions in the dropdown menu depending on which permissions you would wish each member to have access to. You can also optionally provide the members by searching for a user with their username.

The following is the list of available actions for a channel:

• update
• read
• delete
• set_parent_group
• connect_to_client
• publish
• subscribe
• manage_role
• add_role_users
• remove_role_users
• view_role_users

Update Channel Role Name

Click a role in the Roles table to open its page. The page has two tables for the Role Actions and the assigned Role Members.

To update a role name, click on the pencil icon on the far right end of the field, update the value then click on the check icon to update the changes or the cross icon to cancel the changes.

Update Channel Role Actions

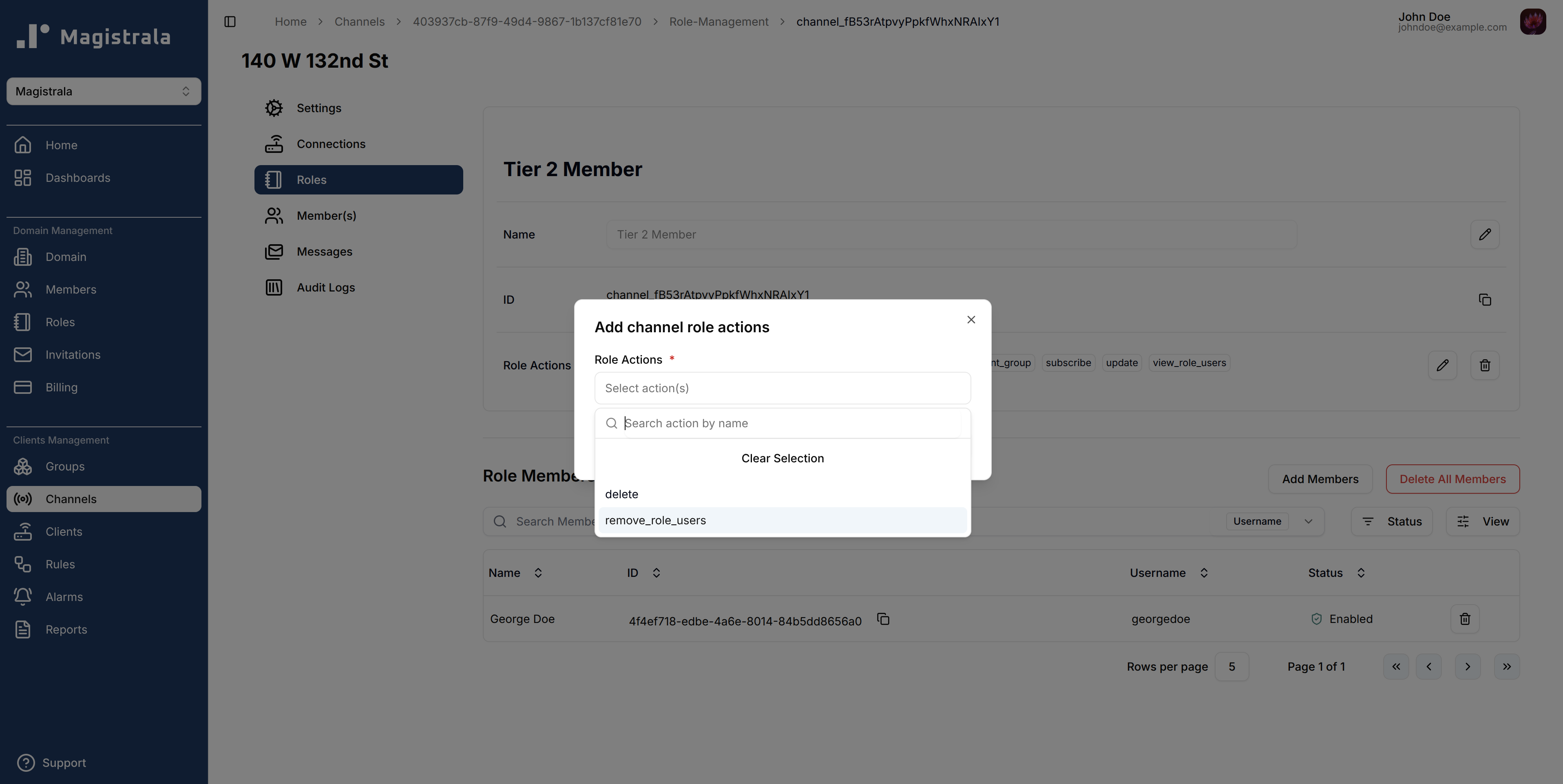

To update the role actions, click the pencil icon on the row. It will open a dialog box allowing you to select the Role Actions you want to add. This list will include all available actions that are not currently among your Role Actions.

Update Channel Role Members

Members are listed in a separate table below the Role Actions section.

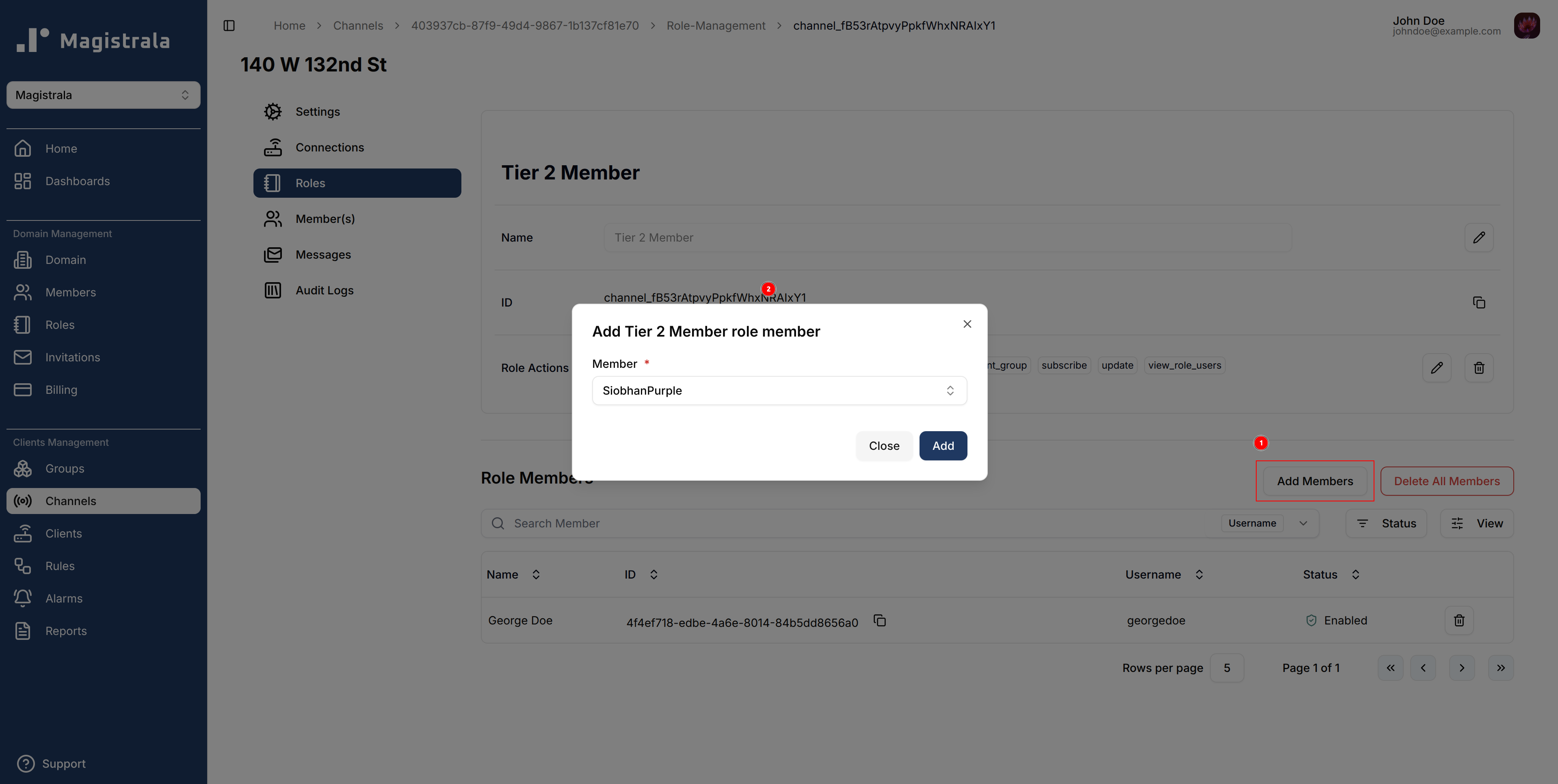

To add new members to the channel under the current role click on Add Members button. The pop-up dialog will allow you to add any user that is a member of the domain to the channel. The users will show up on a dropdown menu.

Delete Channel Role

If you would like to remove or delete any Role Action, click on the trash icon. It pops up a dialog that allows you to select which Role Action you want to remove. Optionally you can delete all of the Role Actions by clicking on the Delete All Actions button.

Delete Channel Role Members

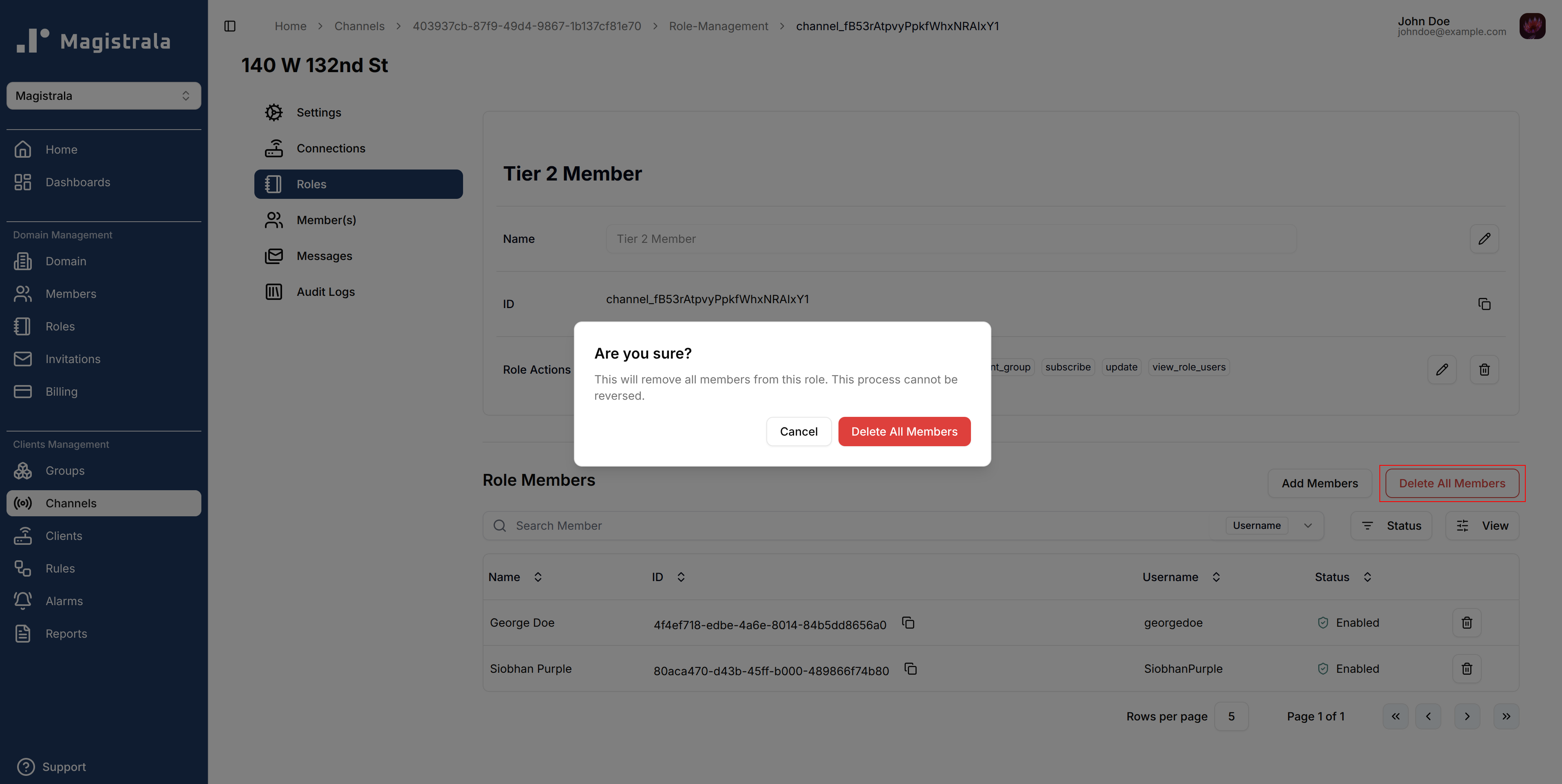

Clicking on the Delete All Members button will open an alert pop-up that requests for confirmation to delete the channel Role Members.

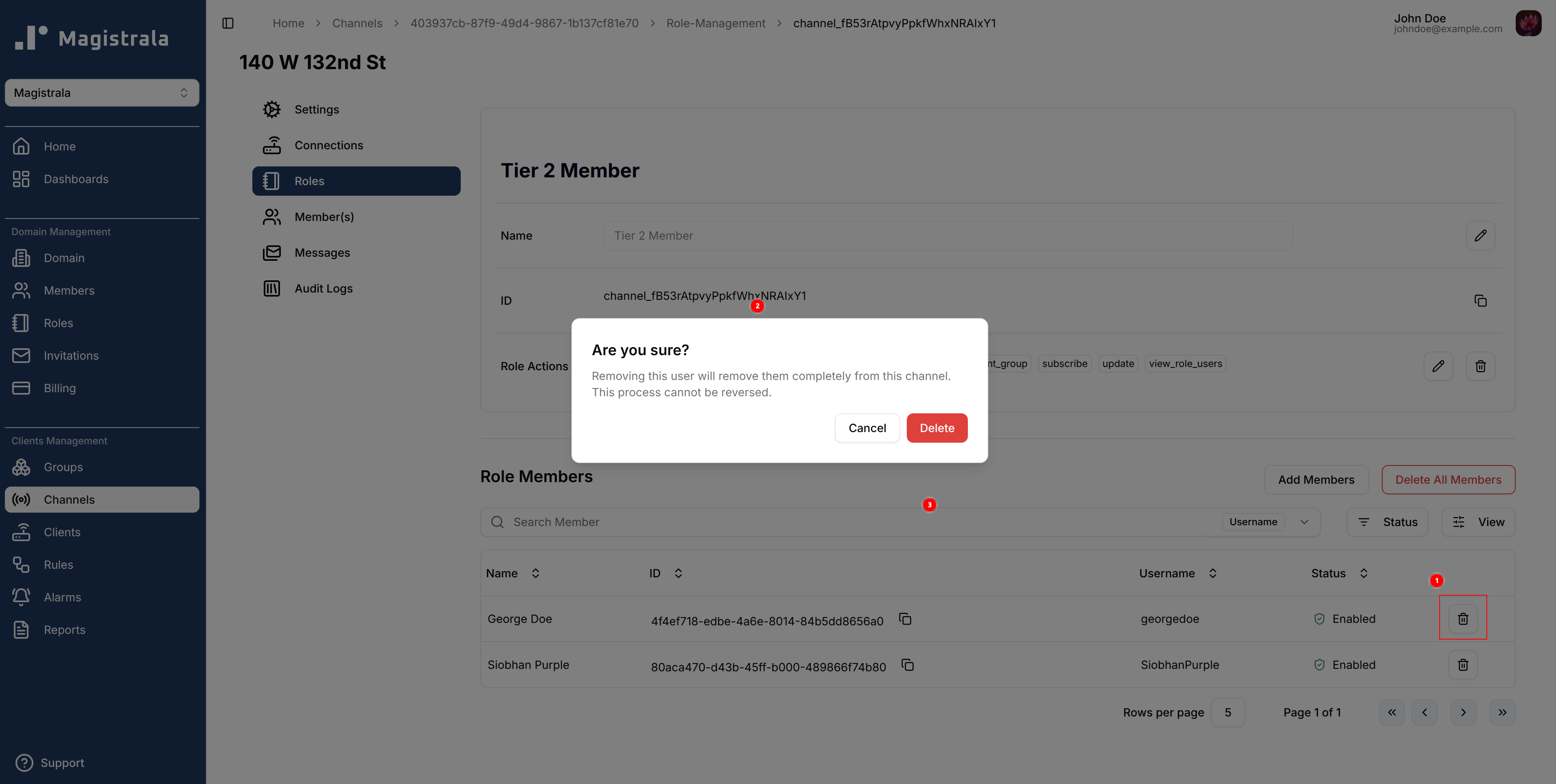

To delete specific members from the Role Members Table, click on the trash icon.

Channel Members

A channel can have multiple users assigned to it with various roles. Much like the Channel Role Members users can create, update and delete any Members from this segment.

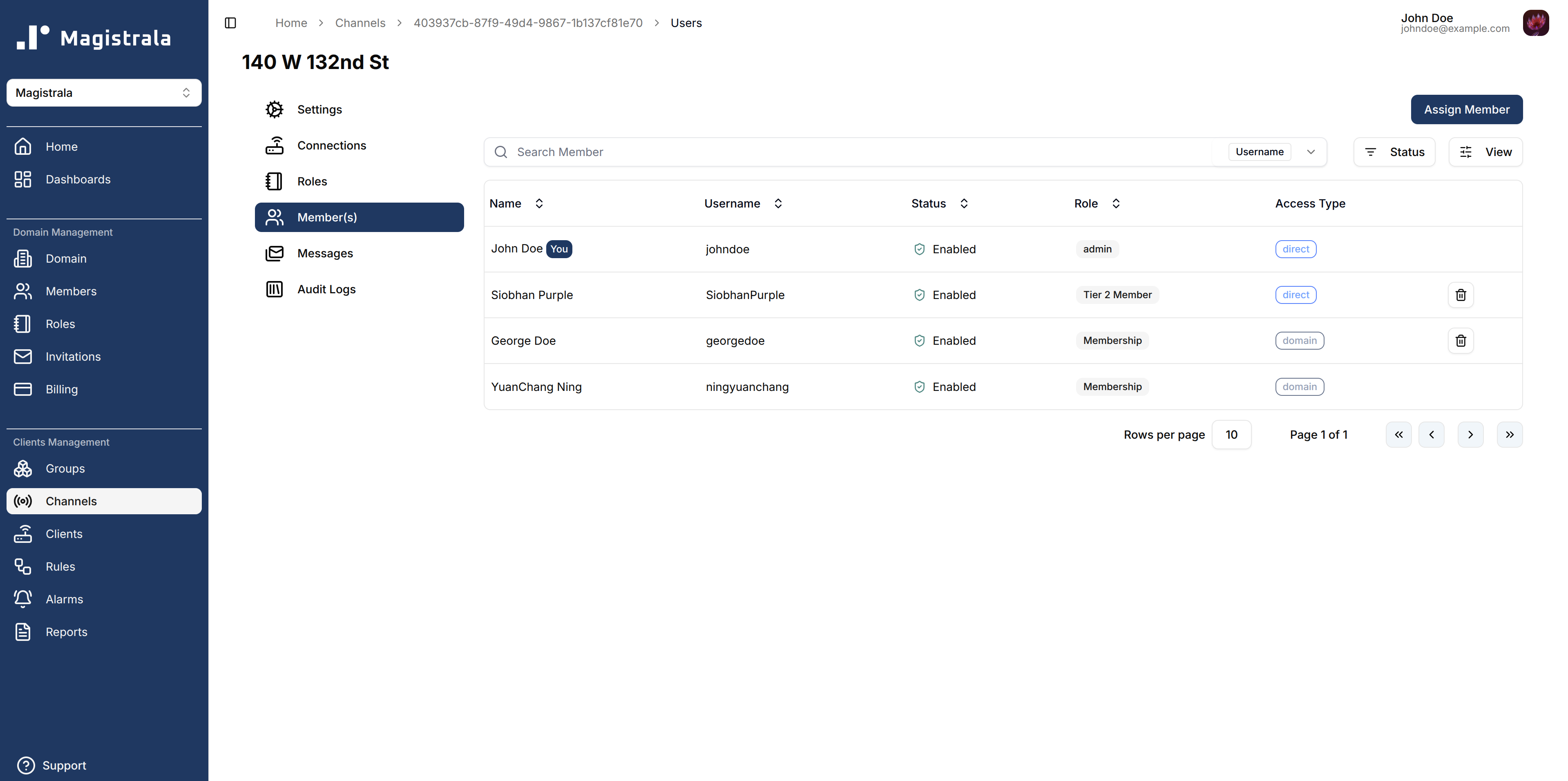

View Channel Members

Navigate to the Members tab under the Channel Menu. This will lead you to a table of all the available members as well their roles. The roles present here are the same roles as the Channel Roles in the section just above

Assign Channel Members

Members can be assigned to a channel by clicking on the Assign Member button. This will open up a dialog that allows you to select from amongst the Domain Members present from a dropdown list. The roles presented will also be the very same Channel Roles from above.

Unassign Channel Members

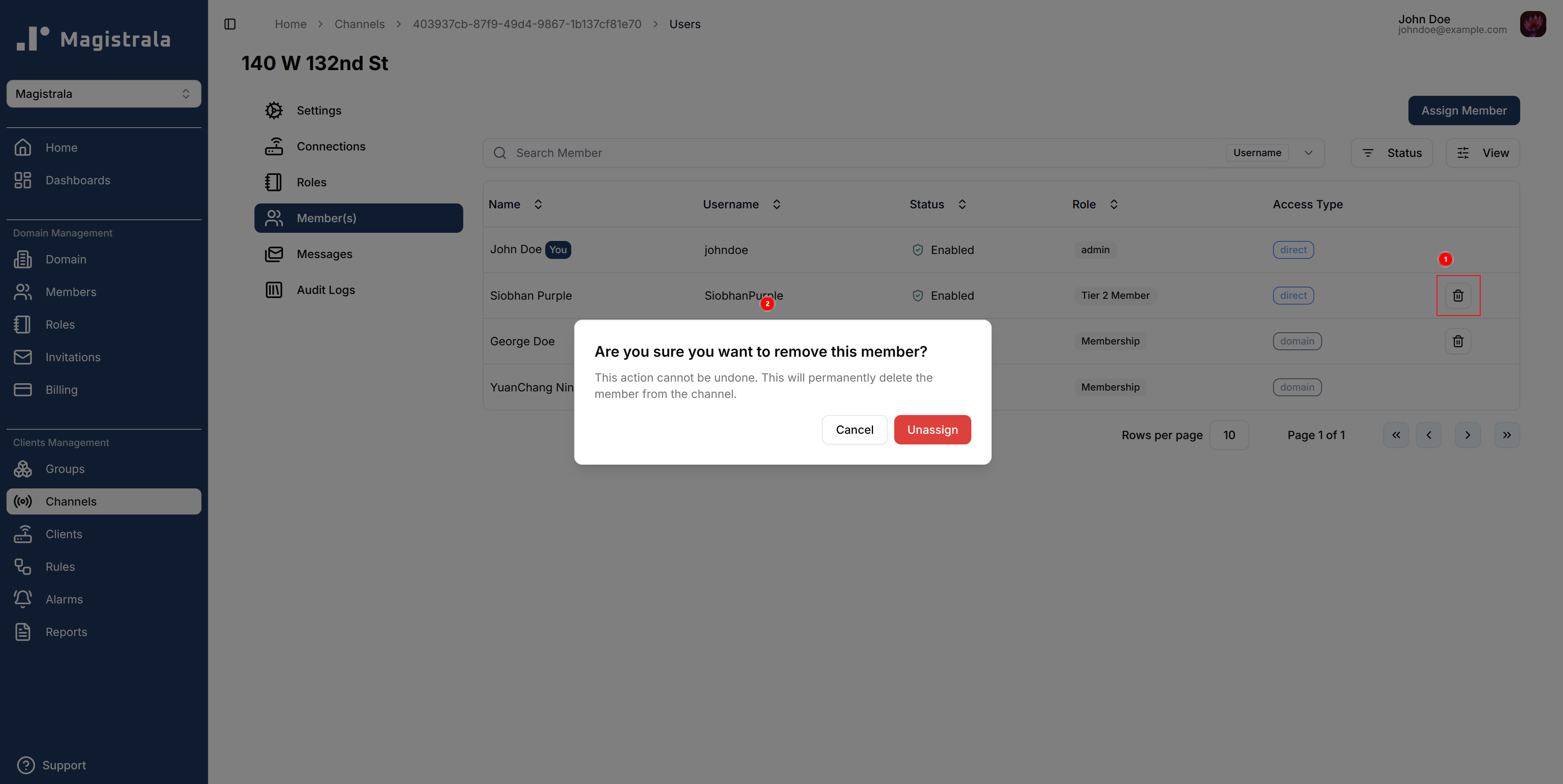

To unassign a specific member from a channel, simply click on the trash Icon on their row in the table. This will bring up a confirmation dialog.

Messages

While on channels, a user can view, send and download messages associated to the channel.

Send Messages

The Send Message feature allows you to publish sensor or device data directly from the Magistrala UI.
A connected client acts as the publisher, and the message can be sent over different supported protocols (HTTP, MQTT, CoAP, WebSocket).

To send a message navigate to the Messages section and click on the Send Message button. In the dialog box, fill in the required fields:

Required Fields

1. Name - The base name of the message (e.g., volume, temperature).
2. Value Type - This would determine the nature of the payload being sent. It could vary between:
   • number
   • boolean
   • string
   • data-value
3. Value - This is the actual measurement or reading (e.g., 6354.886).
4. Publisher - This is the connected Client which can be selected from an infinite select. From this client the backend will get the special Client-Key which will be used to send the message.

Optional Fields

Additional optional fields that help enhance message clarity:

• Unit - This is the unit of the Value of the payload being sent.
• Subtopic - This is a field that can assist in classifying the messages sent. This field MUST match the Rules Engine Publisher topic for the message to be saved in the database.

Message Format

Messages are sent in SenML format, ensuring interoperability and structured data exchange.

By default, messages sent via the Magistrala UI use the HTTP protocol,
but you can also use CLI tools to send them through other protocols.

For detailed instructions on each protocol, see the Messaging Guide.

Saving Messages

For a message to be saved on the Magistrala database, a Rule must be created in Rules Engine in relation to the specific channel and topic. This has been further discussed in the Rules Engine documentation.

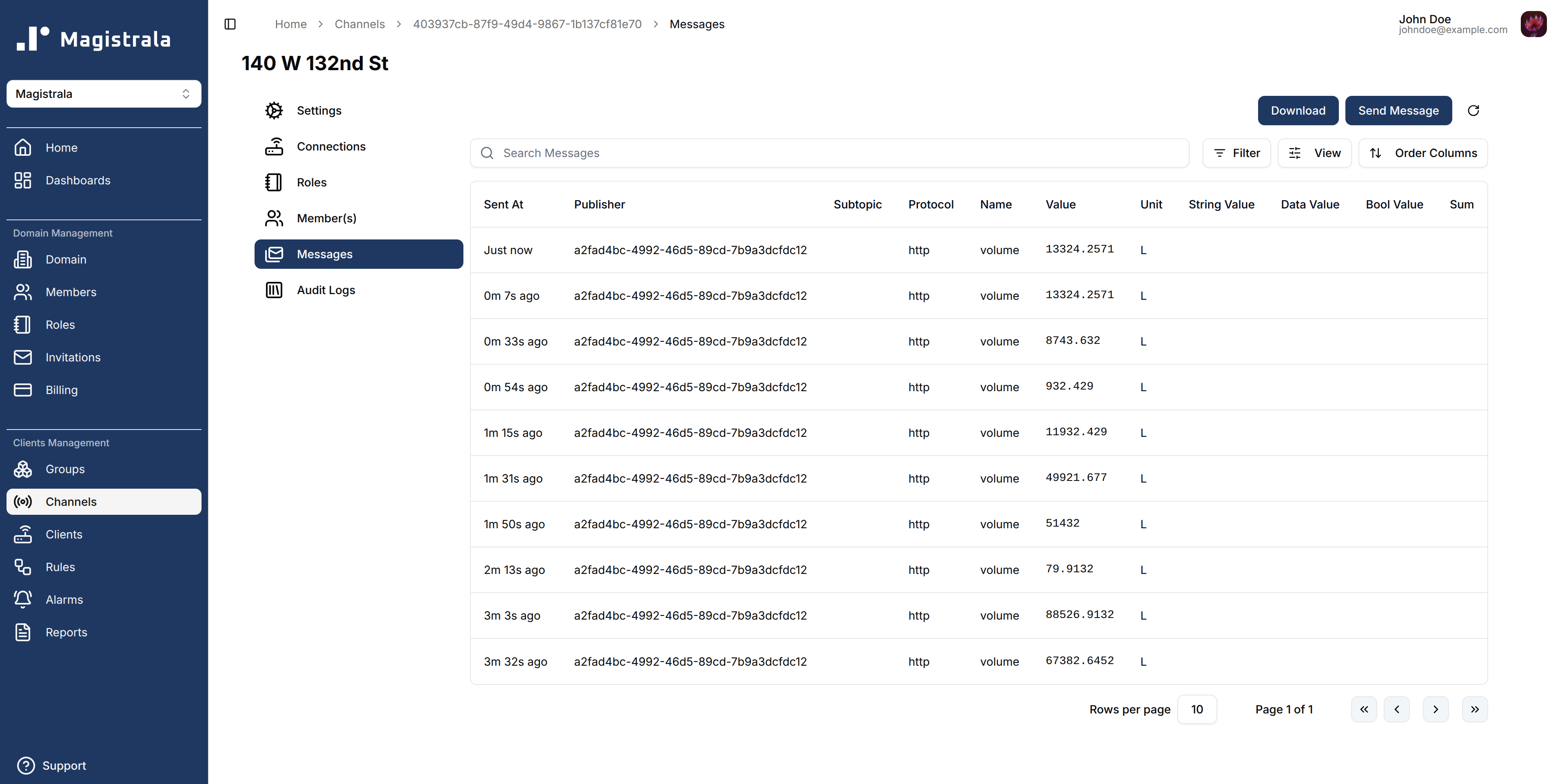

The messages table will then update to include the message sent with the latest message appearing first.

Using CLI Tools

Magistrala provides CLI-ready commands for different messaging protocols. These commands are automatically generated in the Send Message dialog after you fill in the form.

Example: MQTT

mosquitto_pub -I "Apartment A303 Harlem Block A Water Meter" -u a2fad4bc-4992-46d5-89cd-7b9a3dcfdc12 -P defa2b7b-3b9f-49dd-bcda-be6b941db96a -t m/292f15fe-6a8c-4d7d-adc5-8b68dcdfd19b/c/403937cb-87f9-49d4-9867-1b137cf81e70 -h localhost -m '[{"n":"volume","bu":"L","u":"L","bt":1755693352880000000,"v":67382.6452}]'

Example: CoAP

coap-cli post m/292f15fe-6a8c-4d7d-adc5-8b68dcdfd19b/c/403937cb-87f9-49d4-9867-1b137cf81e70 -a defa2b7b-3b9f-49dd-bcda-be6b941db96a -d '[{"n":"volume","bu":"L","u":"L","bt":1755693352880000000,"v":67382.6452}]' -H 0.0.0.0 -p 5683

Example: WebSocket

wscat -c "ws://localhost:8186/m/292f15fe-6a8c-4d7d-adc5-8b68dcdfd19b/c/403937cb-87f9-49d4-9867-1b137cf81e70/?authorization=defa2b7b-3b9f-49dd-bcda-be6b941db96a" -x '[{"n":"volume","bu":"L","u":"L","bt":1755693352880000000,"v":67382.6452}]'

Example: HTTP

curl -s -S -i -X POST -H "Content-Type: application/senml+json" -H "Authorization: Client defa2b7b-3b9f-49dd-bcda-be6b941db96a" http://localhost:8008/m/292f15fe-6a8c-4d7d-adc5-8b68dcdfd19b/c/403937cb-87f9-49d4-9867-1b137cf81e70/ -d '[{"n":"volume","bu":"L","u":"L","bt":1755693352880000000,"v":67382.6452}]'

Filter Messages

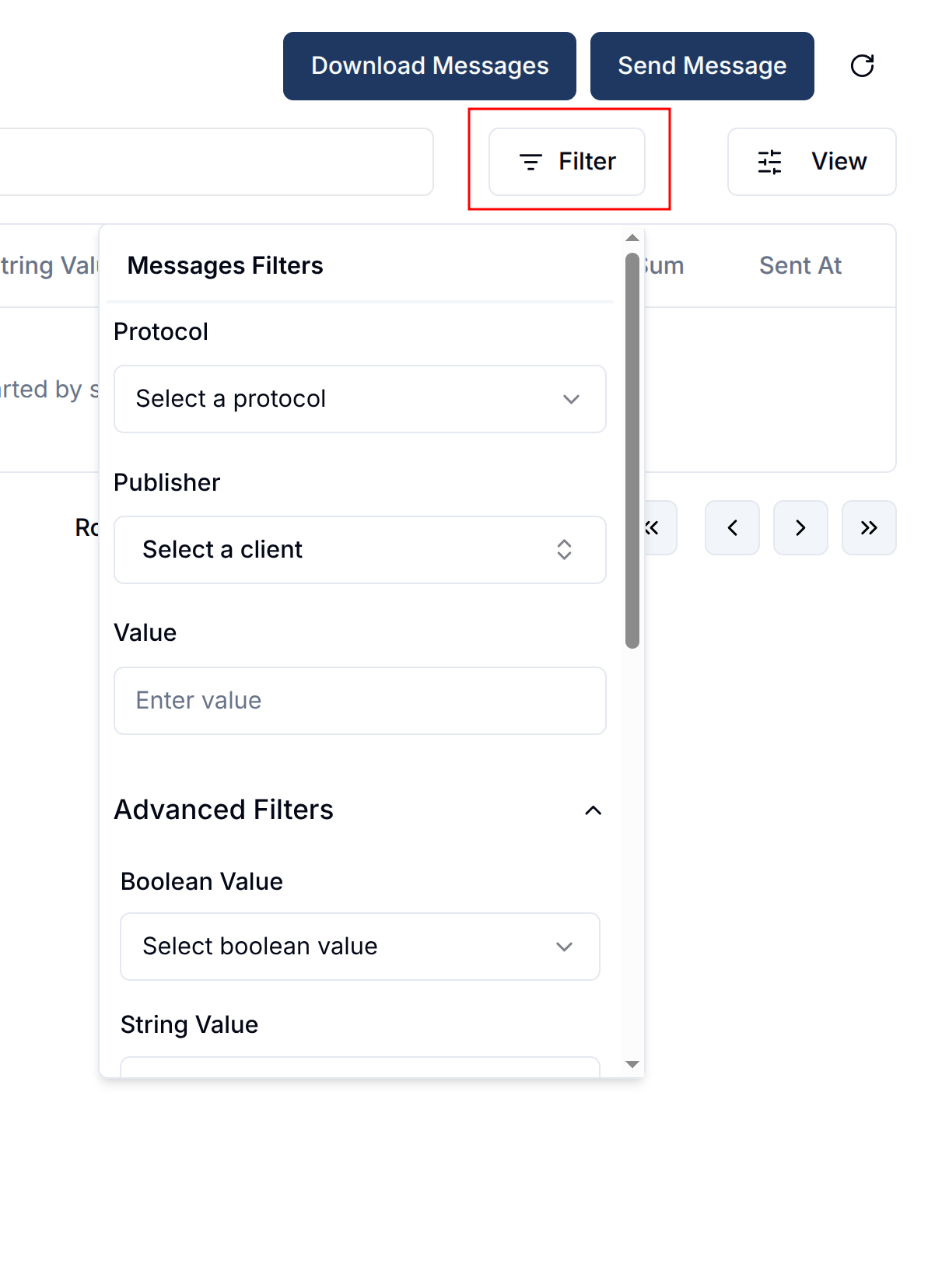

Magistrala provides a detailed Messages Filter Panel to help you query and view only the messages you’re interested in. By clicking on the Filter button in the Messages section, a filter menu appears with various filtering options:

You can filter messages by:

• Protocol – Select the communication protocol used (e.g., MQTT, HTTP).
• Publisher – Choose the client that published the message.
• Value – Input specific values to filter by.
• Boolean Value – Filter by true/false type messages.
• String Value / Data Value – Provide string or data-specific content to match.
• Time Range – Use the From and To date fields to filter messages over a specific time window.
• Aggregation – Select aggregation methods like avg, sum, min, max etc. for time-series aggregation.
• Interval – Set intervals for the aggregation (e.g., 1m, 10s, 1h).

Once filters are selected, click the Update button to refresh the message list.

You can also reset all filters by clicking the Clear All button.

Download Messages

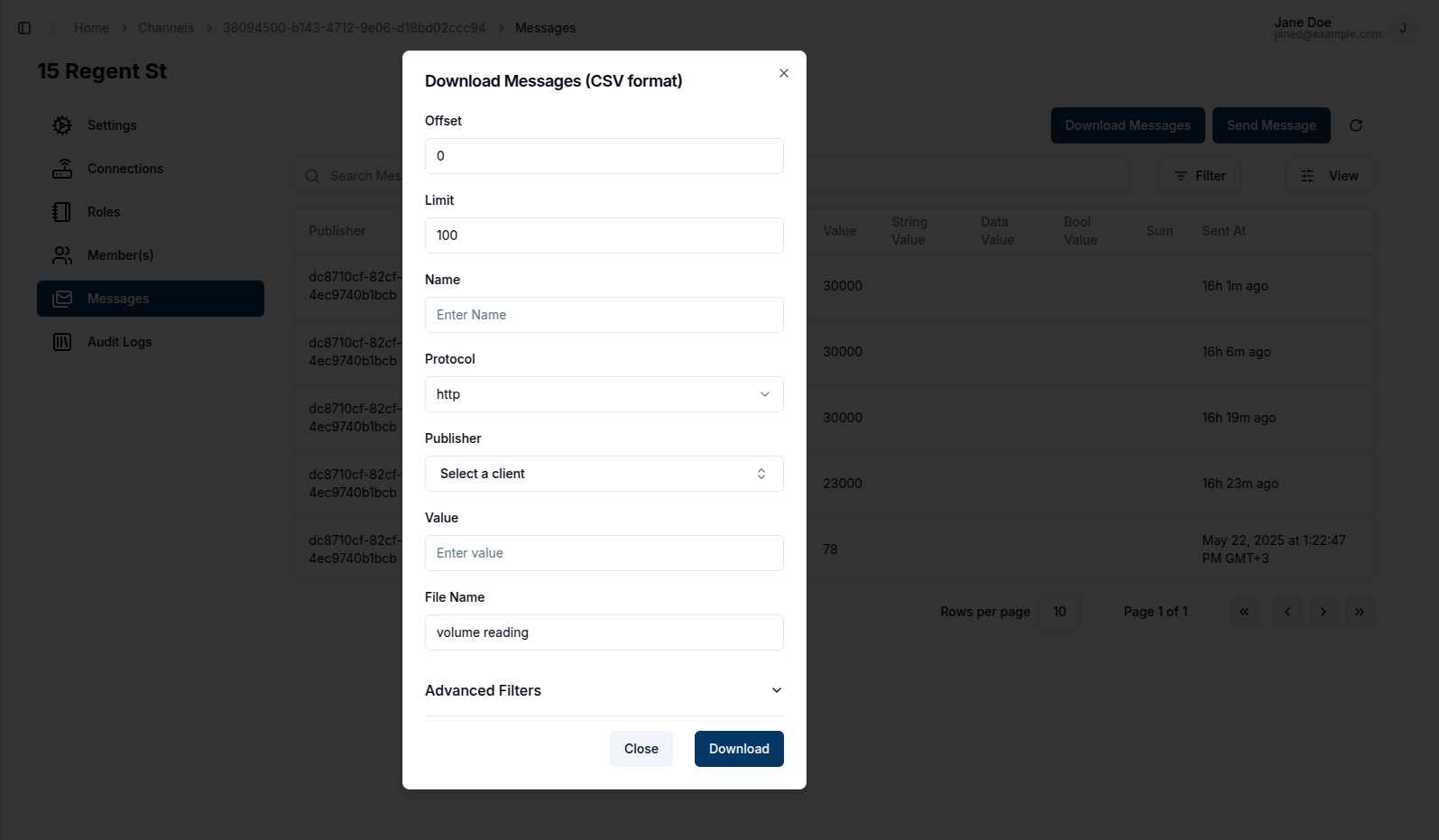

To download messages for reporting or analysis, click on the Download button. A dialog will appear that lets you customize which messages are downloaded:

In the download dialog, you can configure:

• Offset & Limit – Control pagination of the result set.
• Name – Filter messages by message name.
• Protocol – Choose protocol type.
• Publisher – Filter by client who published the messages.
• Value – Match a specific message value.
• File Name – Customize the name of the downloaded file. If a name is not provided we will default to using the Channel ID as the csv file name.

Click Download to generate and download the CSV file containing the matching messages.

Audit Logs

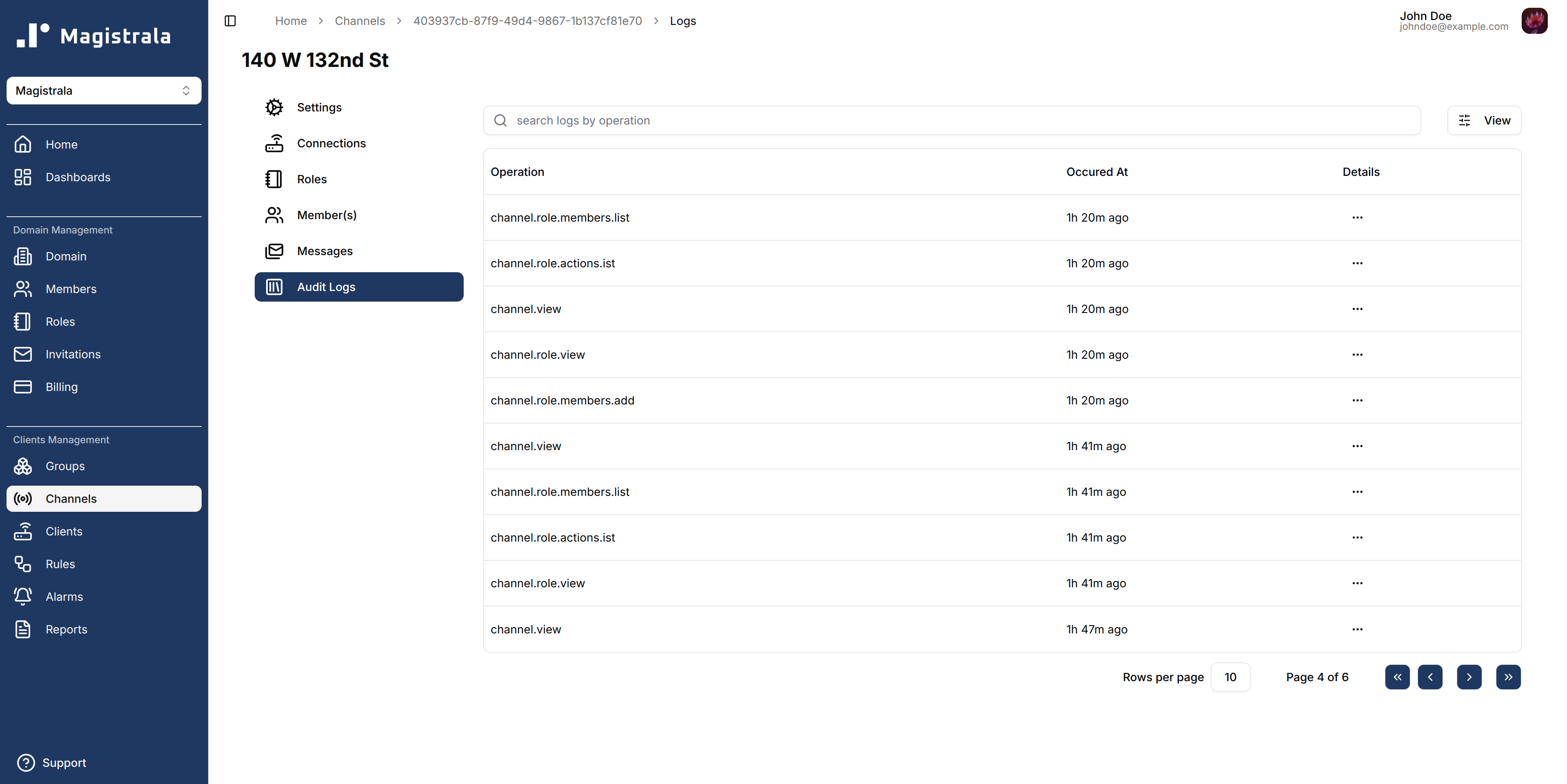

Audit logs track all channel-related events, including creation, updates, disabling, connectivity and role changes.

Each log entry displays the operation type, a timestamp, and optional details for deeper inspection.

You can search logs by operation type using the search input above the log table.

The most recent operations—such as channel.view, channel.create, and channel.connect—are displayed at the top.

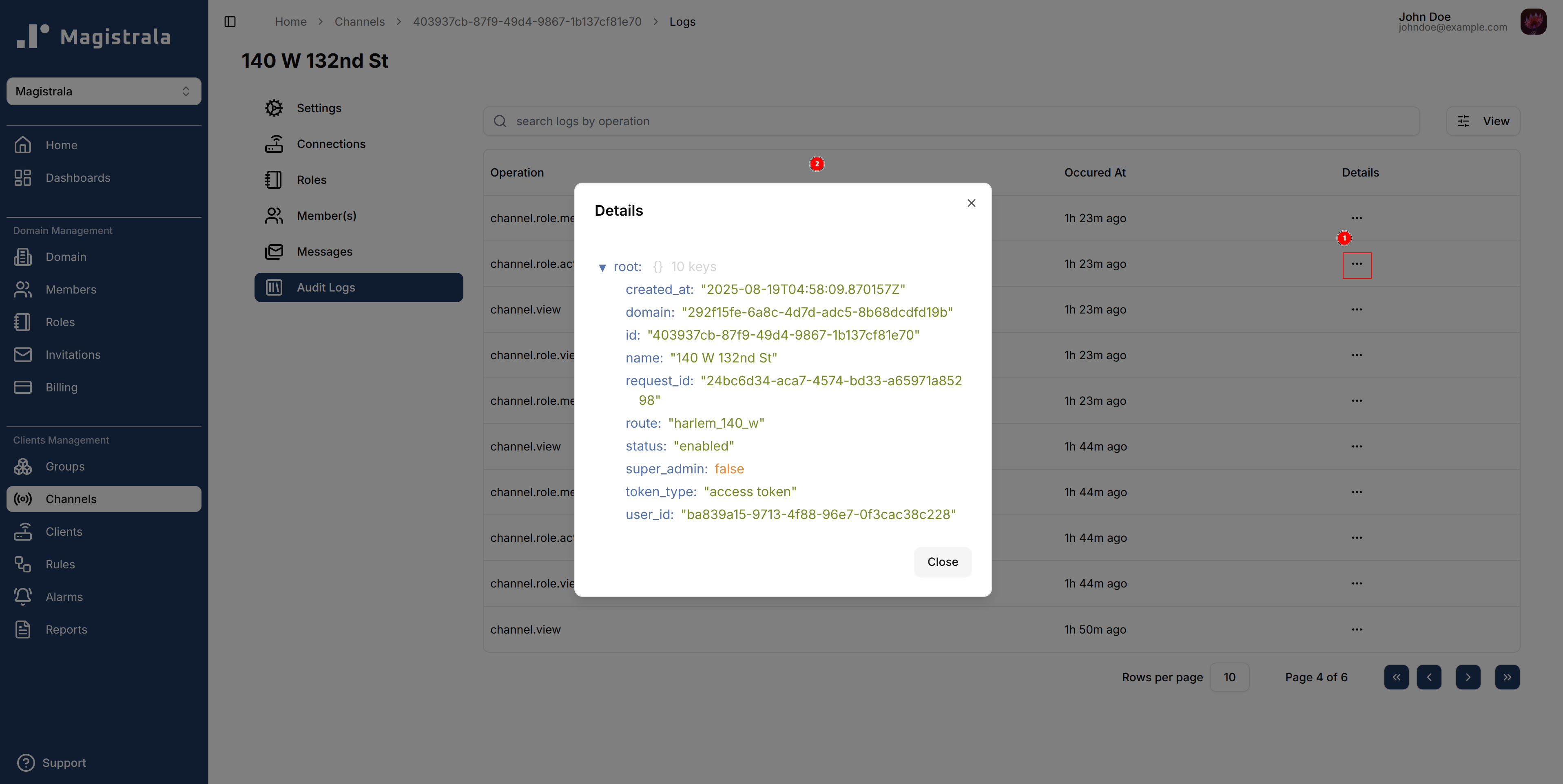

Clicking on the Details button at the end of each row opens a modal displaying structured details about the selected operation.

These details may include:

• created_at: Timestamp of creation
• id: Unique channel ID
• name: Full channel name, e.g., "15 Regent St"
• status: Whether the channel is "enabled" or "disabled"
• super_admin: Indicates if the channel was flagged as a super admin
• domain: Associated domain UUID
• request_id: Unique request UUID for tracing
• user_id: UUID of the user who performed the action
• tags: A list of contextual tags like "West End Block A", "London", "Floor 3"
• token_type: The type of token used for the action (e.g., "access token")

This enables users to trace changes, audit security, and diagnose issues efficiently.
