Clients

A Client in Magistrala can be either a device or an application that publishes or subscribes to messages.

Create a Client

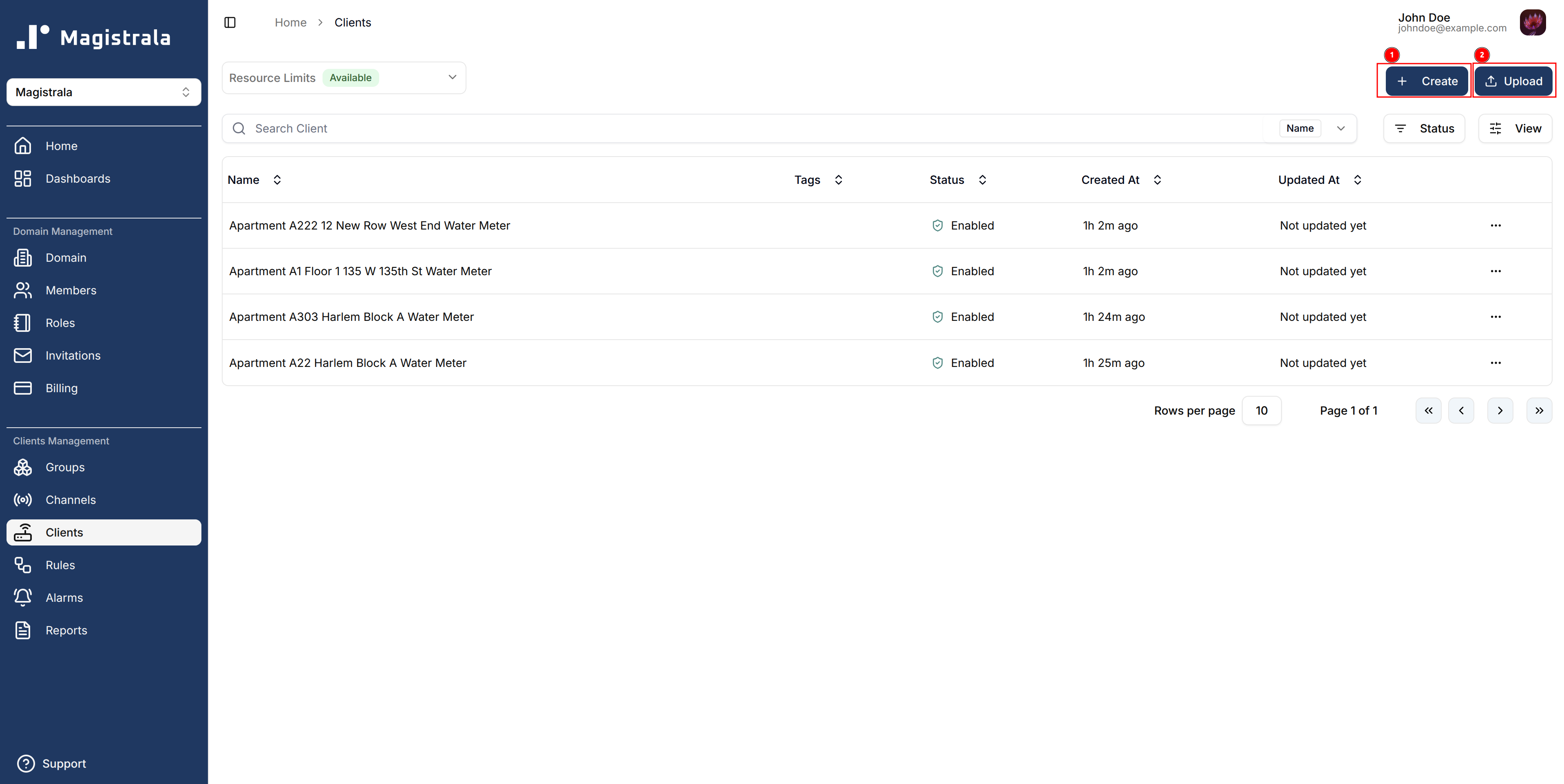

To create a client, click on the + Create button present at the top-left of the page. You can also create multiple clients at once by clicking on the + Create Clients button and uploading a .csv file with client names and any other fields you would like to add.

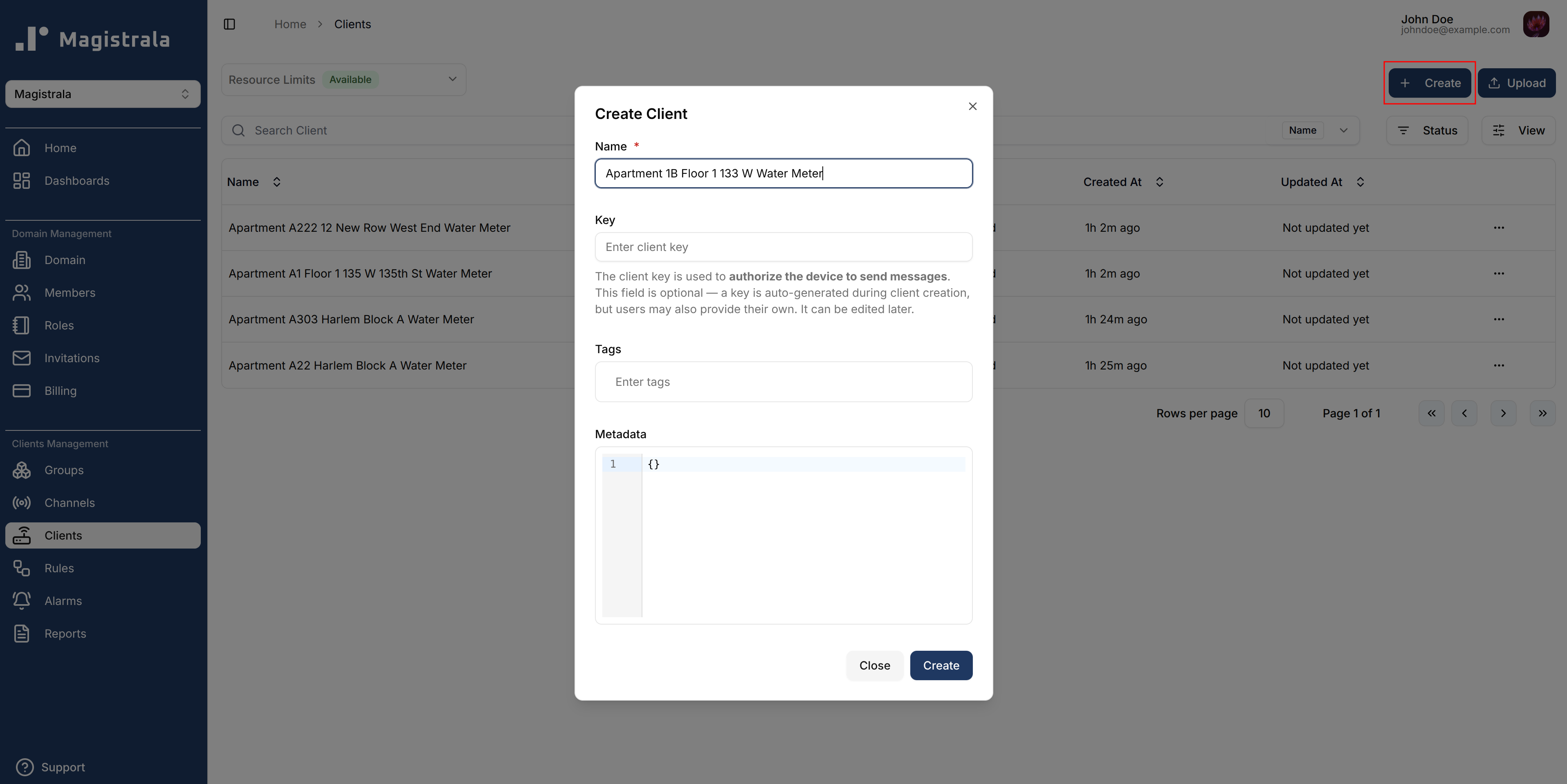

Client Information

Each client requires a name.
You may also add an optional key (must be unique), tags, and metadata.

The client key is used to authorize the device when sending messages.

Bulk Creation

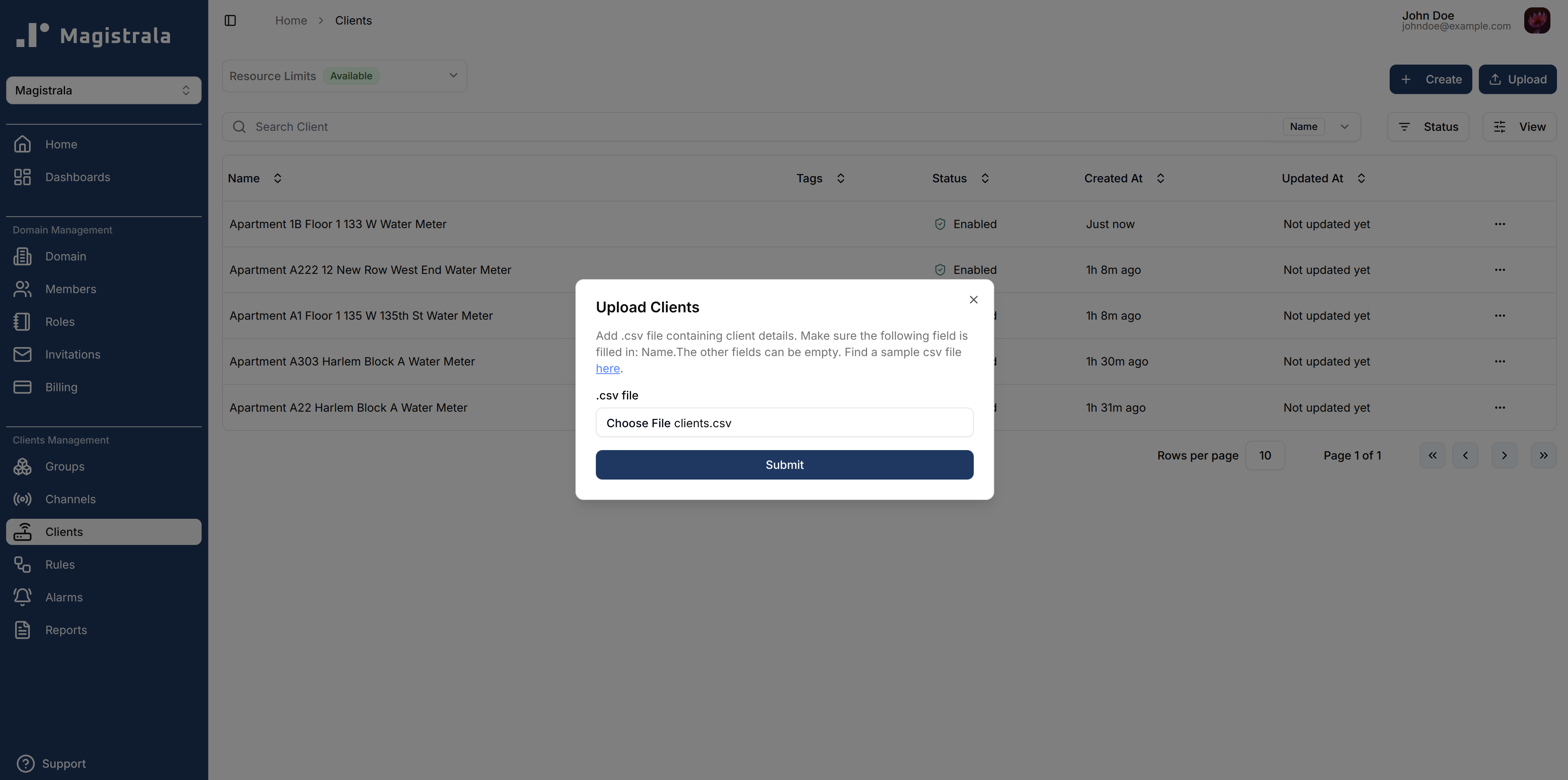

Clients can be created in bulk using a .csv file with the following fields (in order):

1. Name (Required)
2. Secret
3. Tags
4. Metadata

A sample clients CSV file is available.

View a Client

After creation, clients are listed in the Clients table.
Click a row (or the View button in the row actions) to open the client’s configuration page.

Configurations

The client configuration page has two tabs: Configuration and Metadata.

Configuration Tab

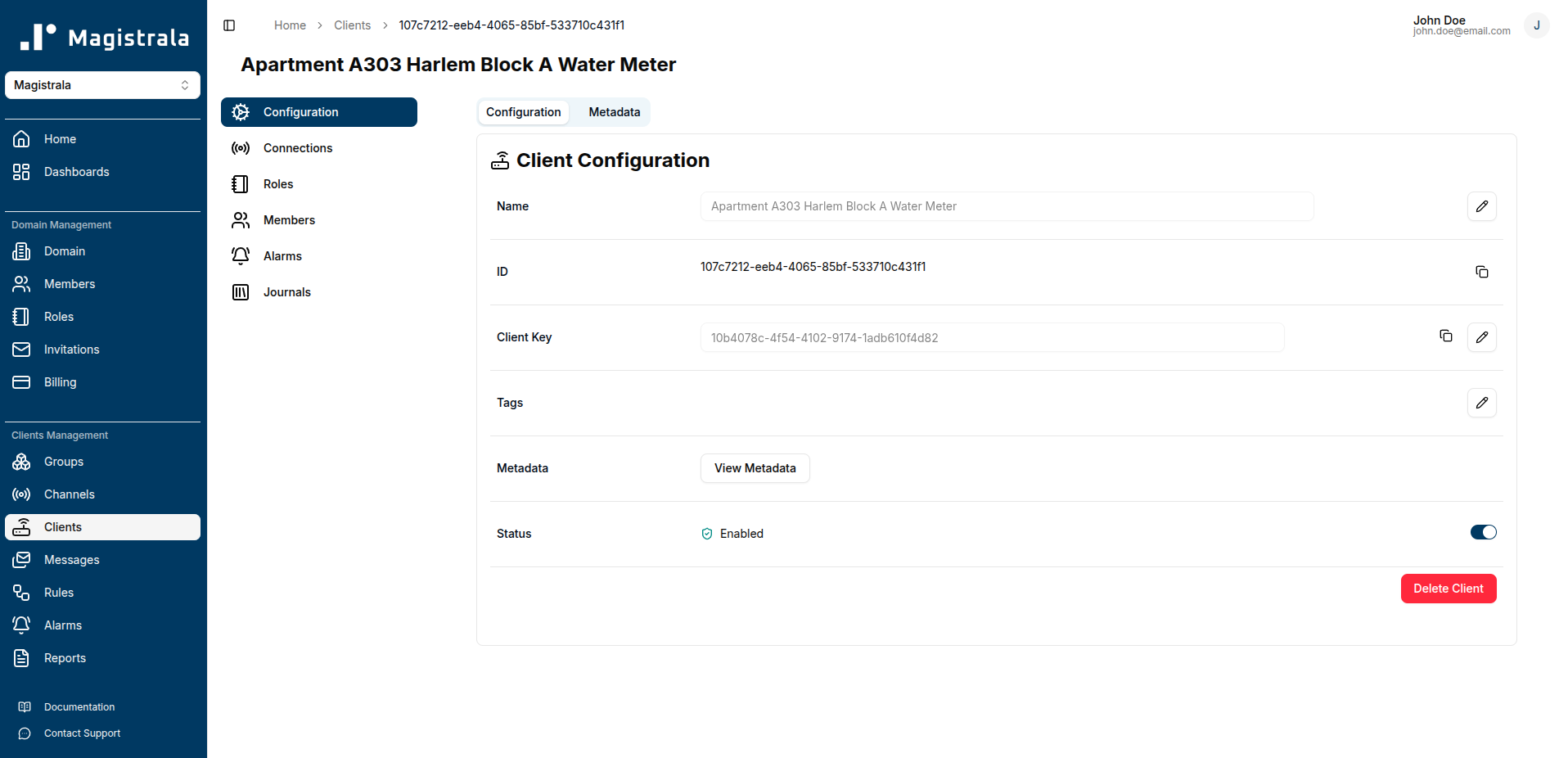

The Configuration tab displays key details about a client and allows you to edit core properties:

Editable Fields:

• Name – Client identifier
• Client Key – Authorization key for message sending
• Tags – Keywords for organization (press Enter after each tag to confirm)
• Status – Enable or disable the client using the toggle switch

View-Only Fields:

• ID – Unique client identifier
• Metadata – View existing metadata in JSON format (managed in the Metadata tab)

To update a field, click the pencil icon next to it. Once you have updated the value, click the check icon to save changes or the cross icon to cancel.

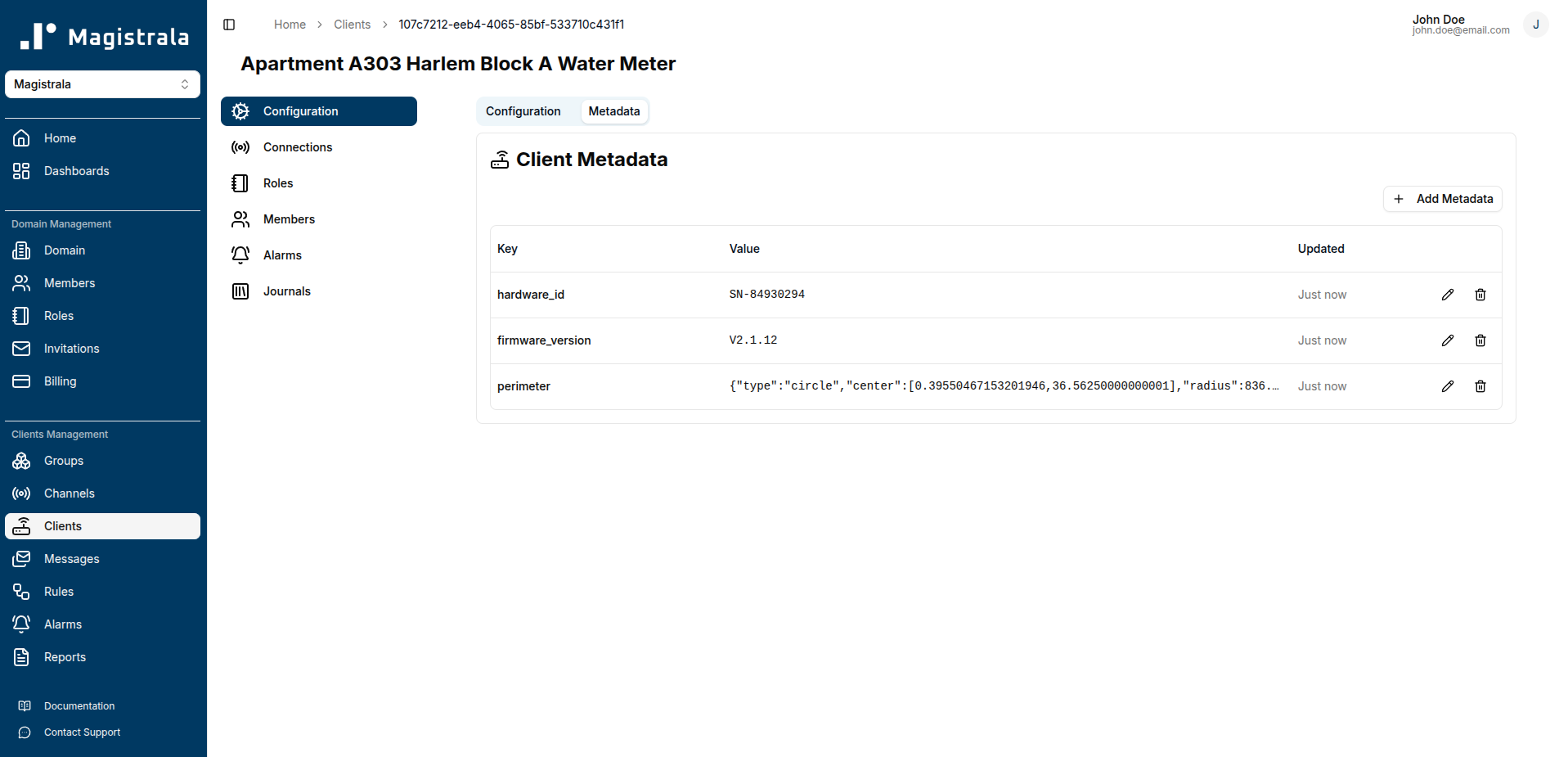

Metadata Tab

The Metadata tab allows you to add, view, and manage additional information for the client. Metadata supports various value types including text, numbers, booleans, JSON objects, locations, and perimeters.

For detailed instructions on managing metadata, including working with interactive maps for location and perimeter data, see the Metadata Management Guide.

Connect to a Channel

Navigate to the Connections tab of the client sidebar to see connected channels.

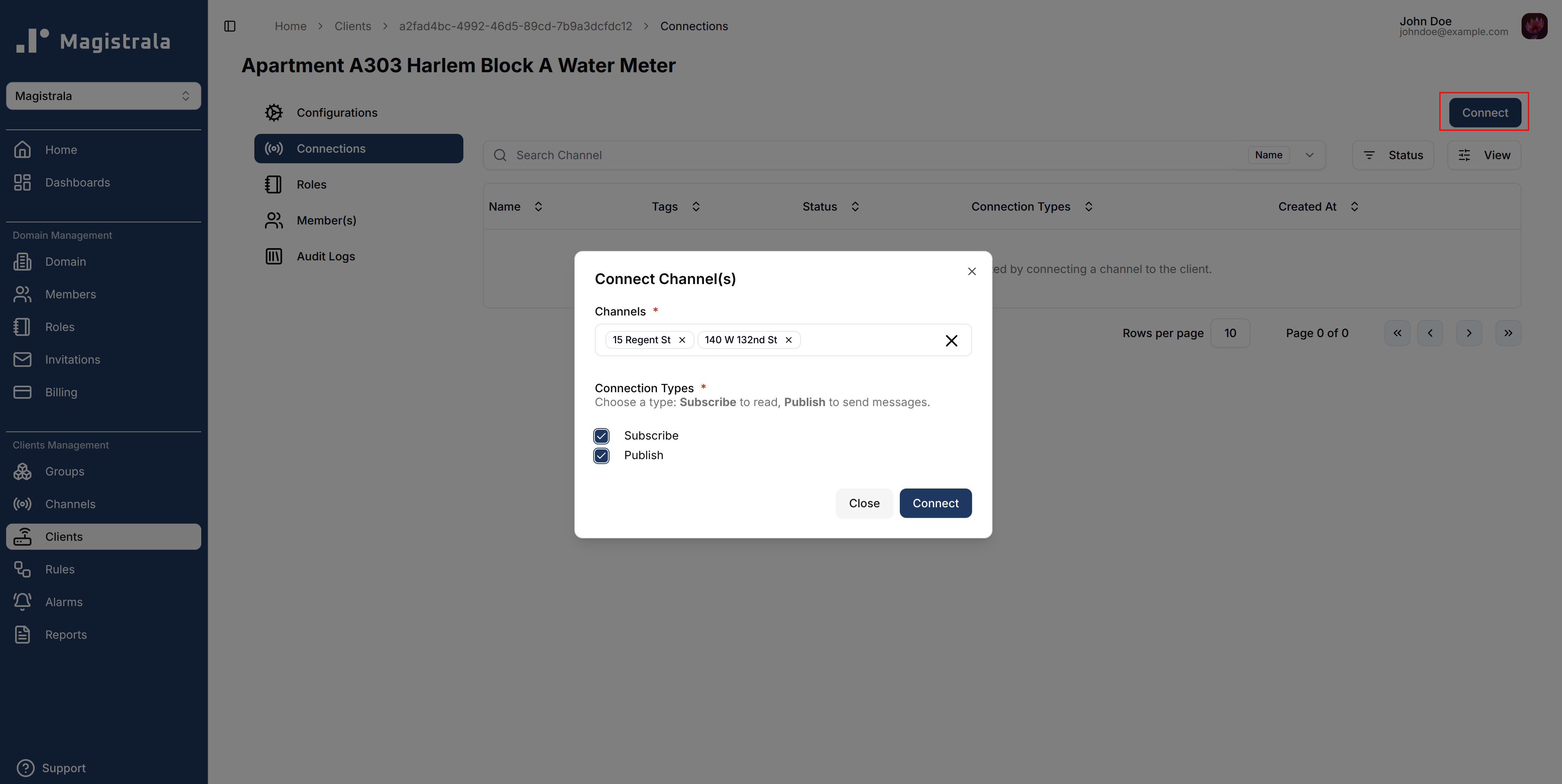

In this page you are able to add a connection by clicking on the Connect button on the top right corner.

A dialog will open where you can select channels and connection types. A client can have both connection types selected.
There are two connection type options:

1. Publish: allows the client to send messages in the channel
2. Subscribe: allows the client to read messages in the channel

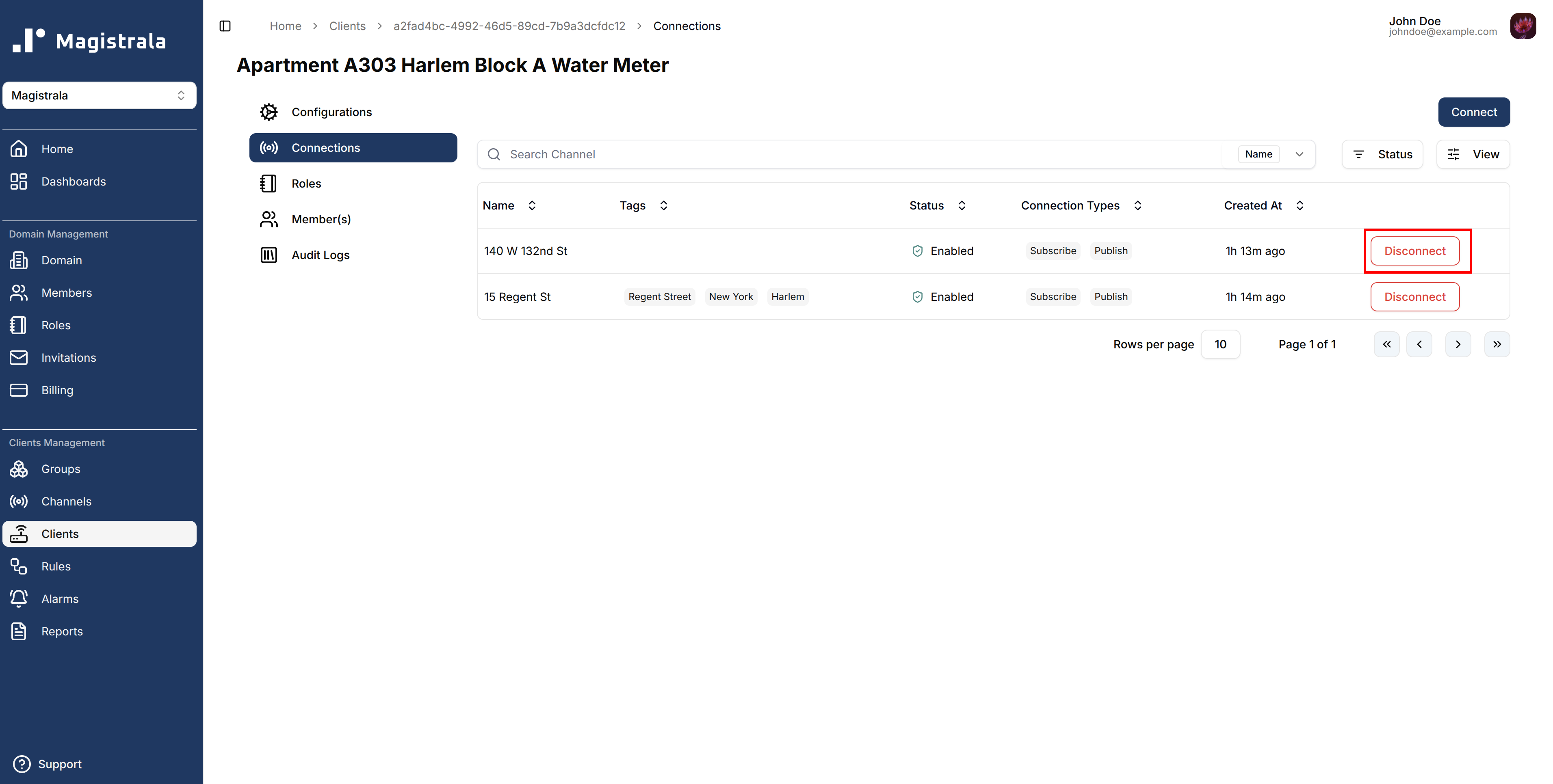

To disconnect from the channel, click on the Disconnect button at the end of the channel row.

This will open up a dialog that allows you to select which connection type you want to remove. You can remove one or both of the connection types if you have multiple.

Client Roles

Roles define a set of actions that can be allocated to users.

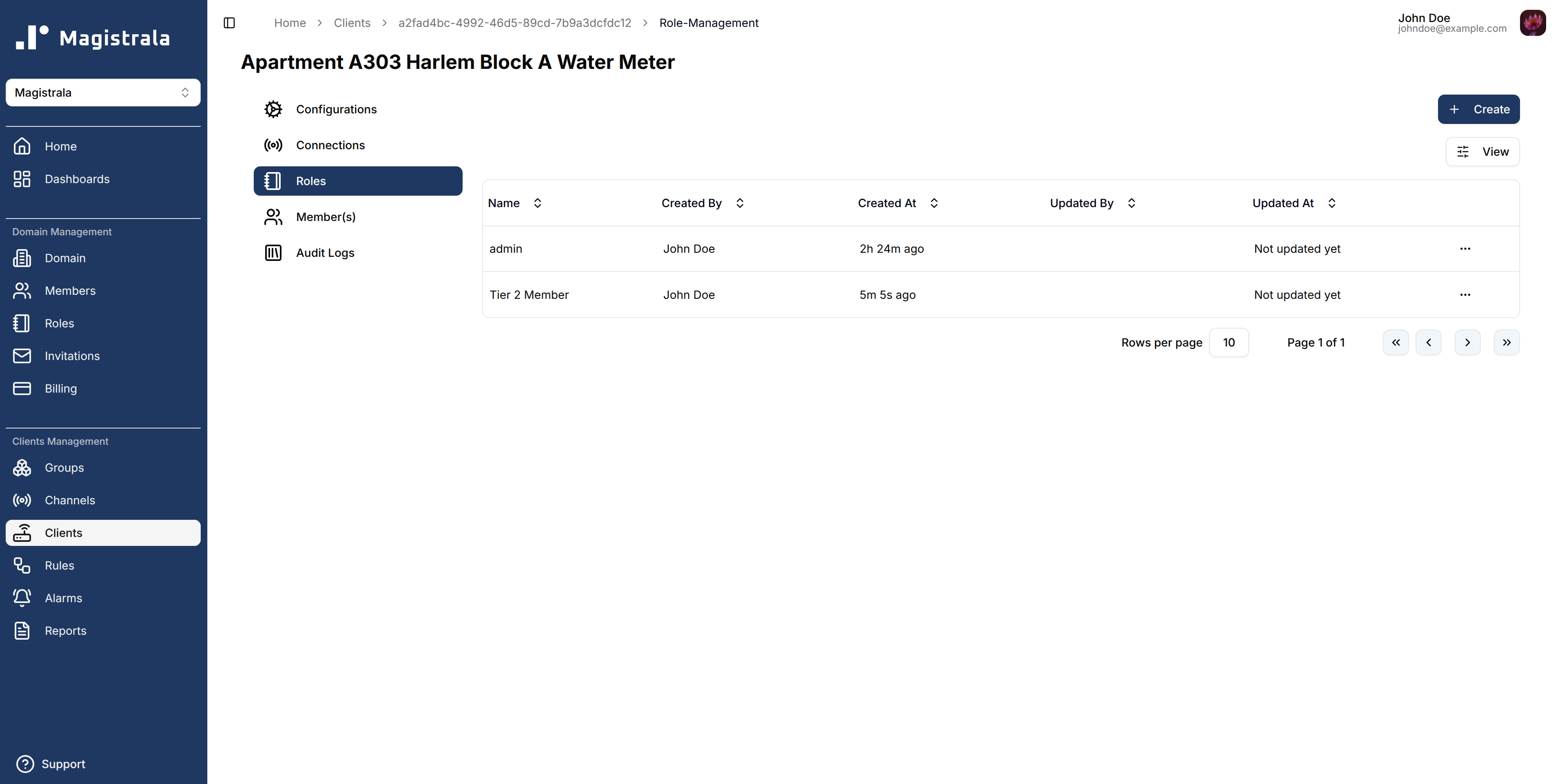

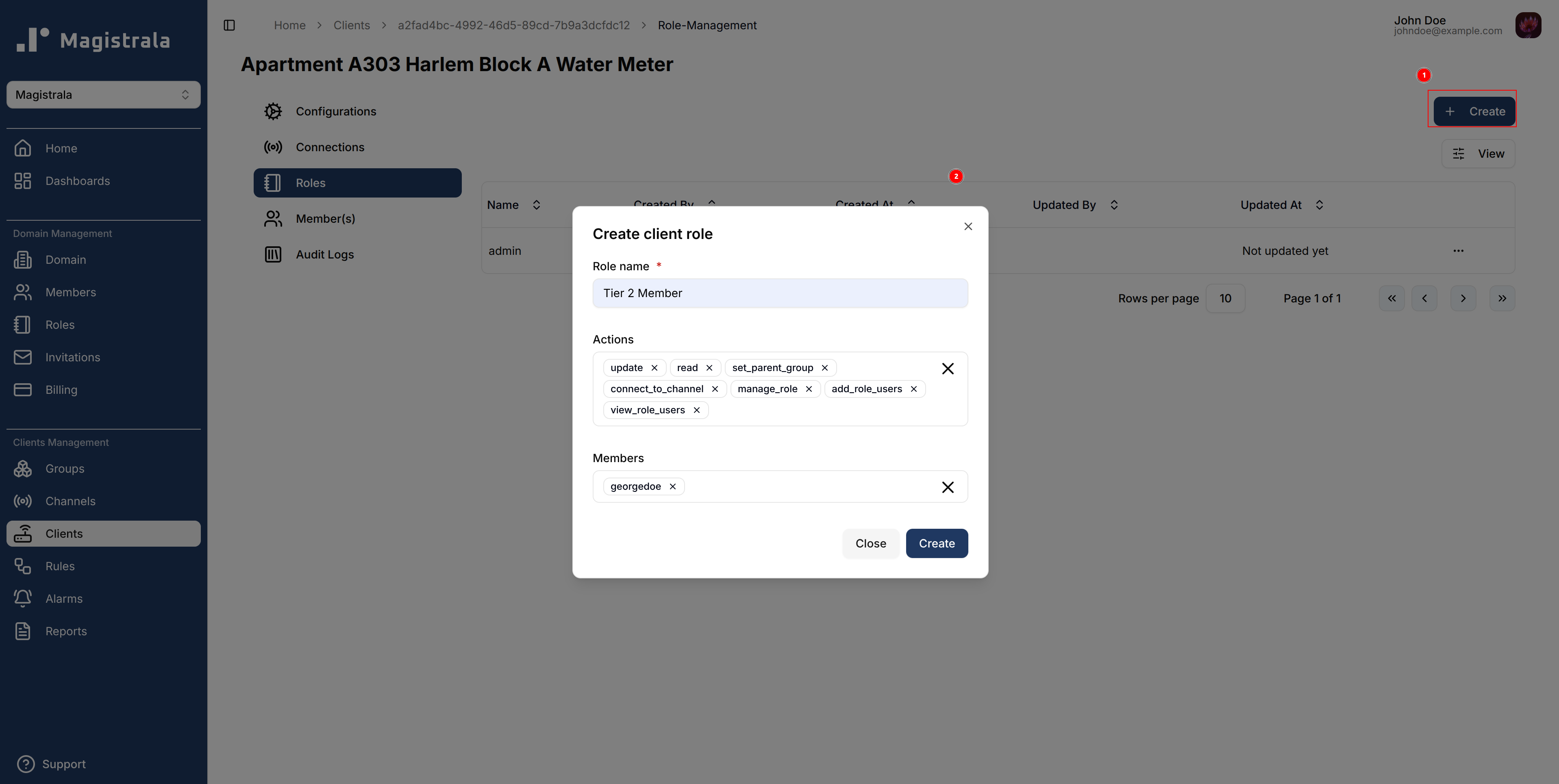

To create a role, navigate to the Roles tab on the client sidebar. Click on the + Create button and provide a role name. The actions and members are optional fields.

Role Information

The Role name is complusory. You can optionally provide the role actions by selecting from the available actions. You can also optionally provide the members by searching for a user with their username.

The following is the list of available actions for a client:

• update
• read
• delete
• set_parent_group
• connect_to_channel
• manage_role
• add_role_users
• view_role_users
• remove_role_users

Update Client Roles

Click a role in the Roles table to open its page. The page has two tables for the Role Actions and the assigned Role Members.

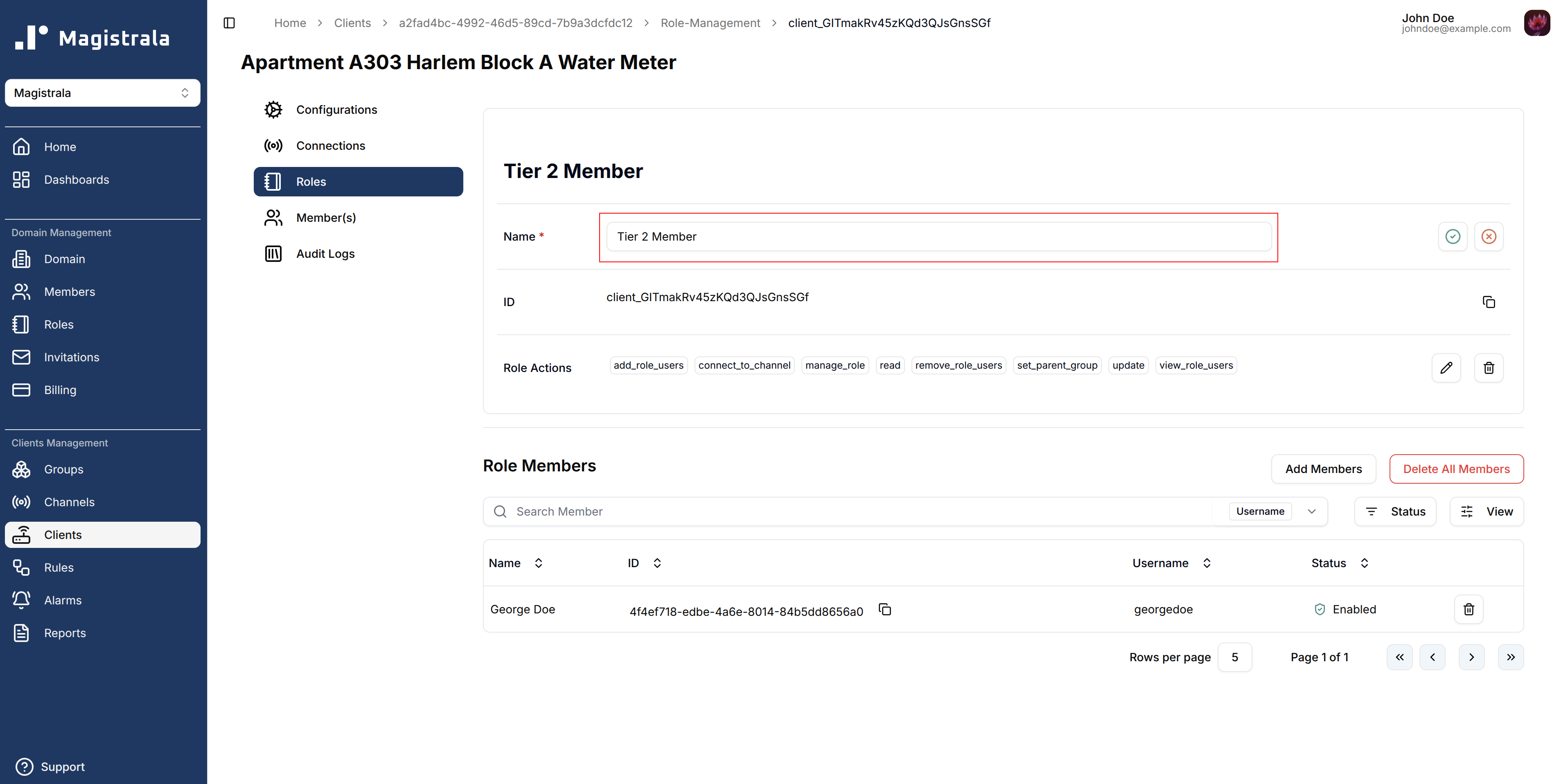

To update a role name, click on the pencil icon on the far right end of the field, update the value then click on the check icon to update the changes or the cross icon to cancel the changes.

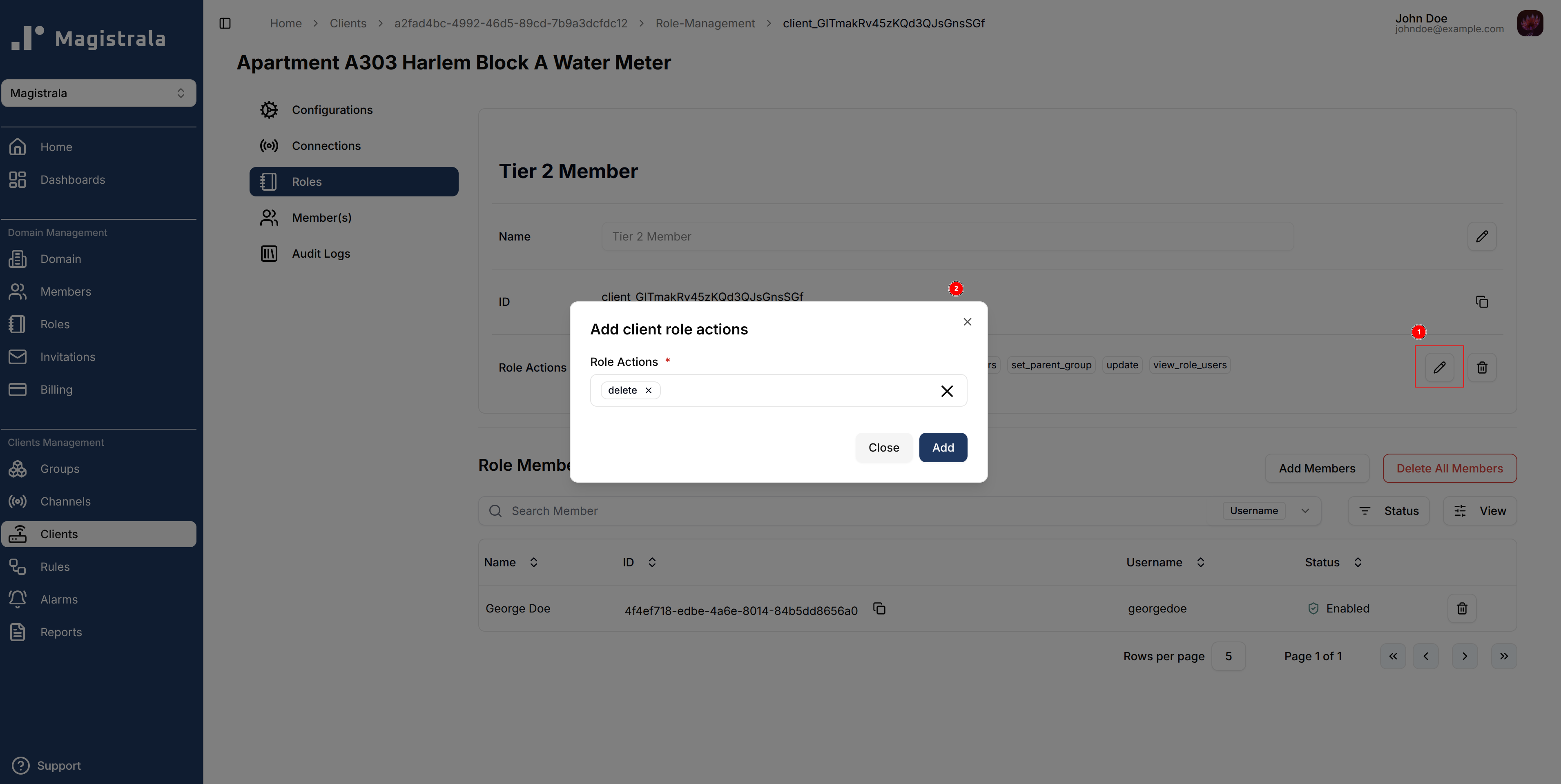

To update the Role Actions click on the pencil icon, it will pop up a dialog box allowing you to select the actions you want to add.

To update the Role Members, click the Add Members button. A popup dialog will appear with the list of Domain Members from which a user can select.

Delete Client Roles

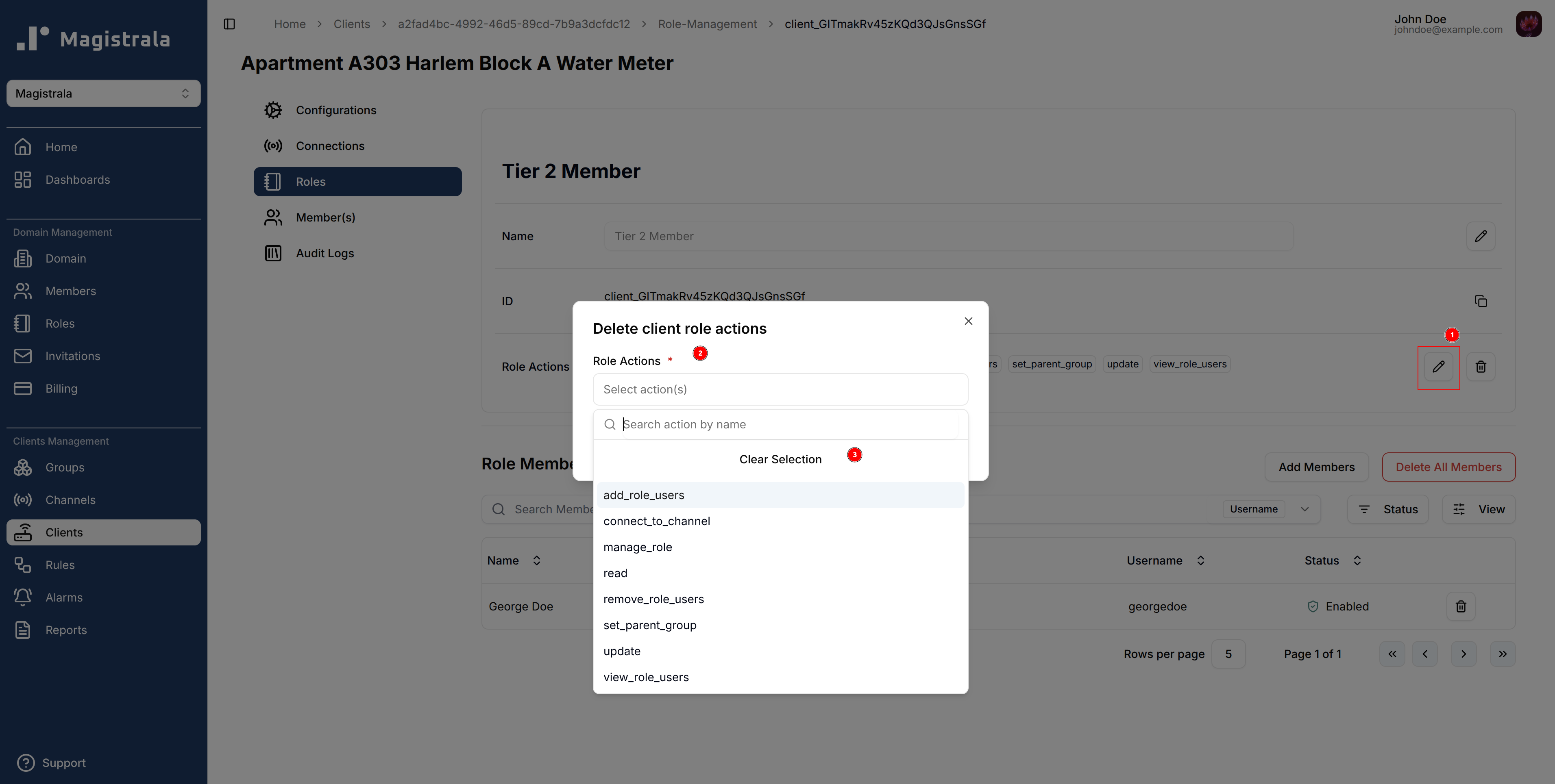

You can also delete actions and members by clicking on the trash icon. It pops up a dialog that allows you to select which action you want to remove. There is also an option for clearing the whole list if that is needed as well.

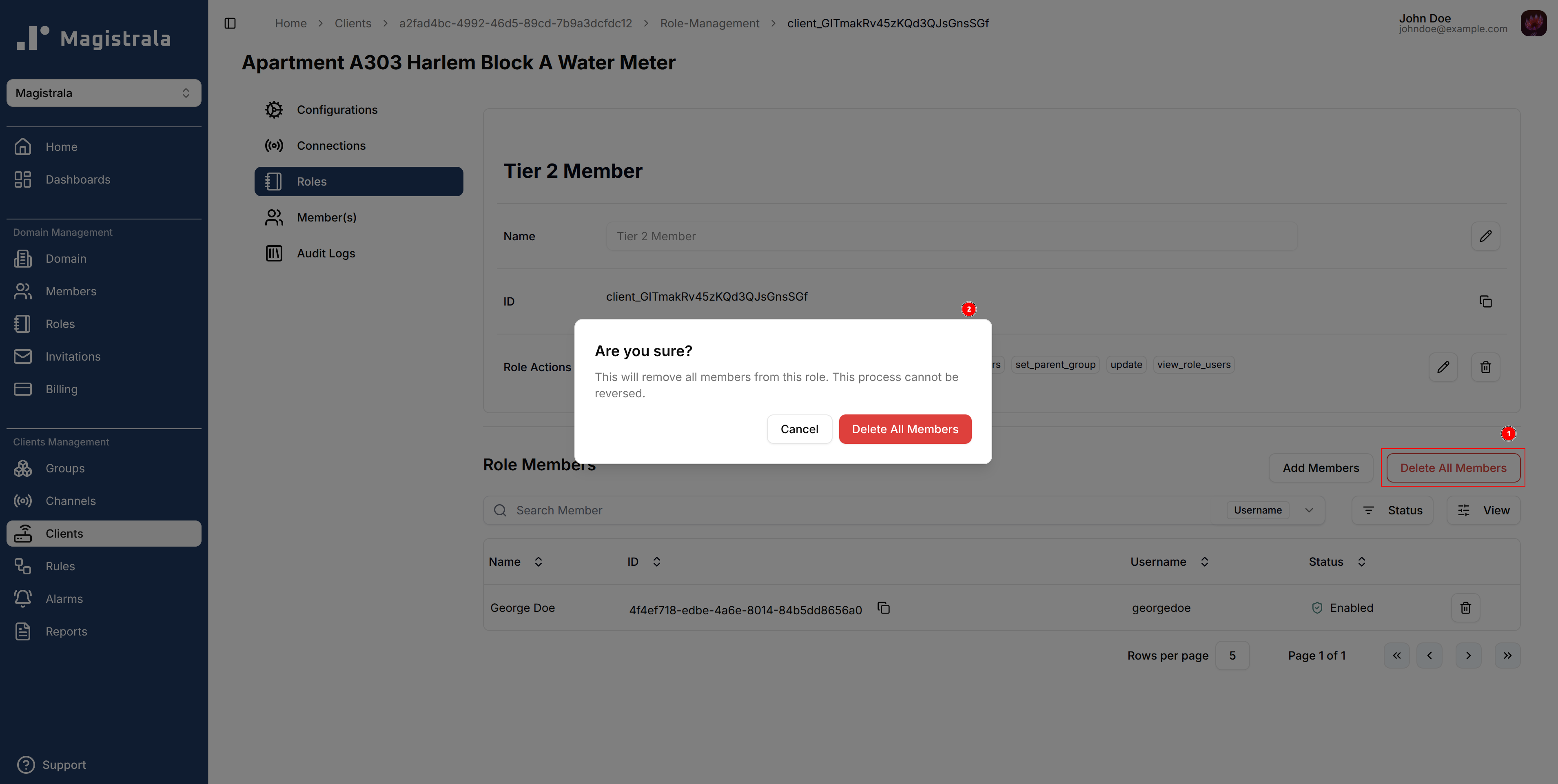

When it comes to Role Members, you can clear the whole table with the Delete All Members which will lead to this alert dialog:

To delete specific members from the Role Members Table, click on the trash icon.

Client Members

While we can create new members from the Roles section alongside the new roles actions, we can also assign members to the client through the Members Section.

Clicking on the Assign Member button will open a dialog box that allows the user to select amongst the Domain Members present as well as the Roles present in the Client.

Client Alarms

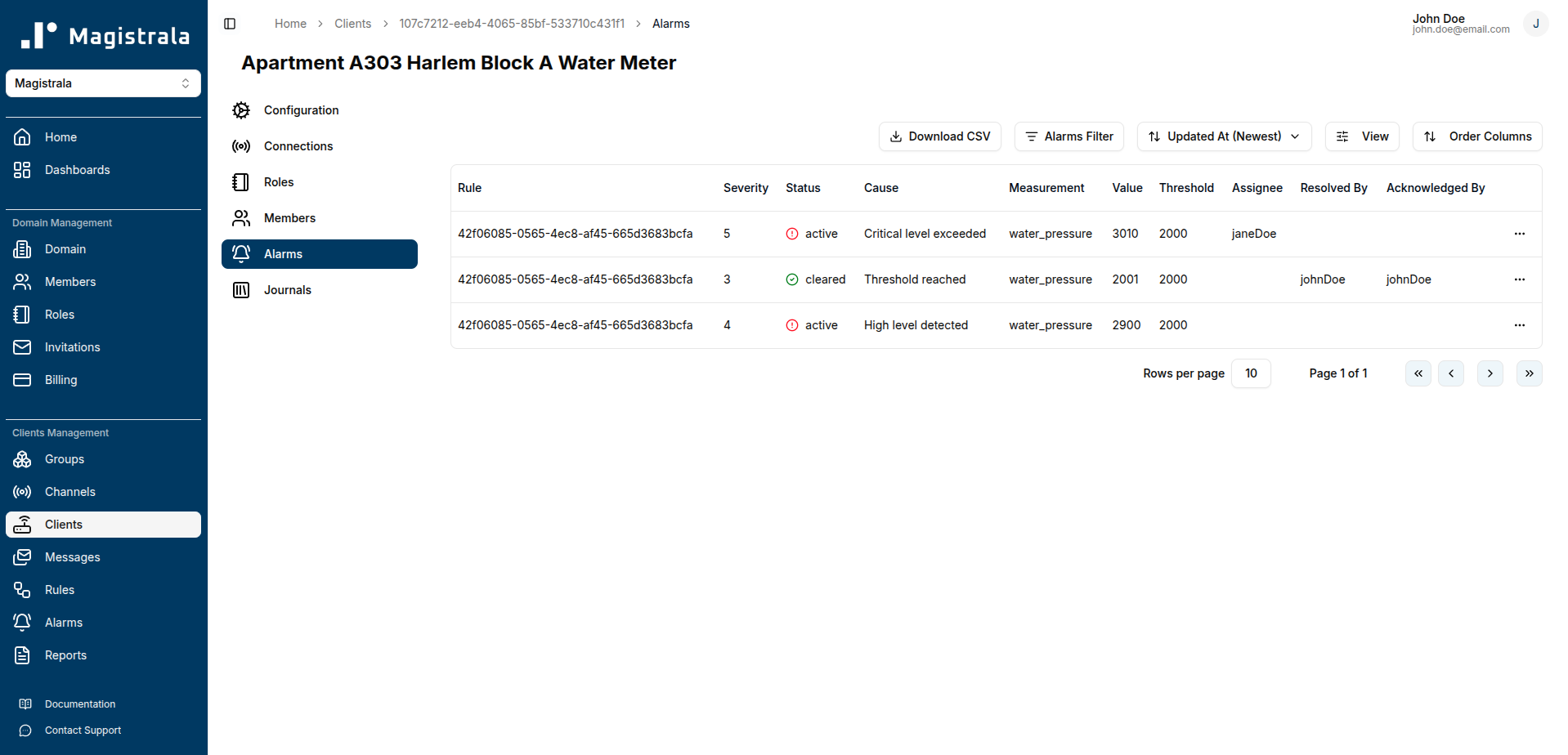

The Alarms section displays all alarms triggered by this specific client. This provides a focused view of alerts related to the client's activity and helps with targeted troubleshooting.

From this page, you can perform all standard alarm management actions:

• View alarm details
• Assign alarms to team members
• Acknowledge alarms
• Clear/resolve alarms
• Delete alarms

For detailed instructions on managing alarms, see the Alarms documentation.

Audit Logs

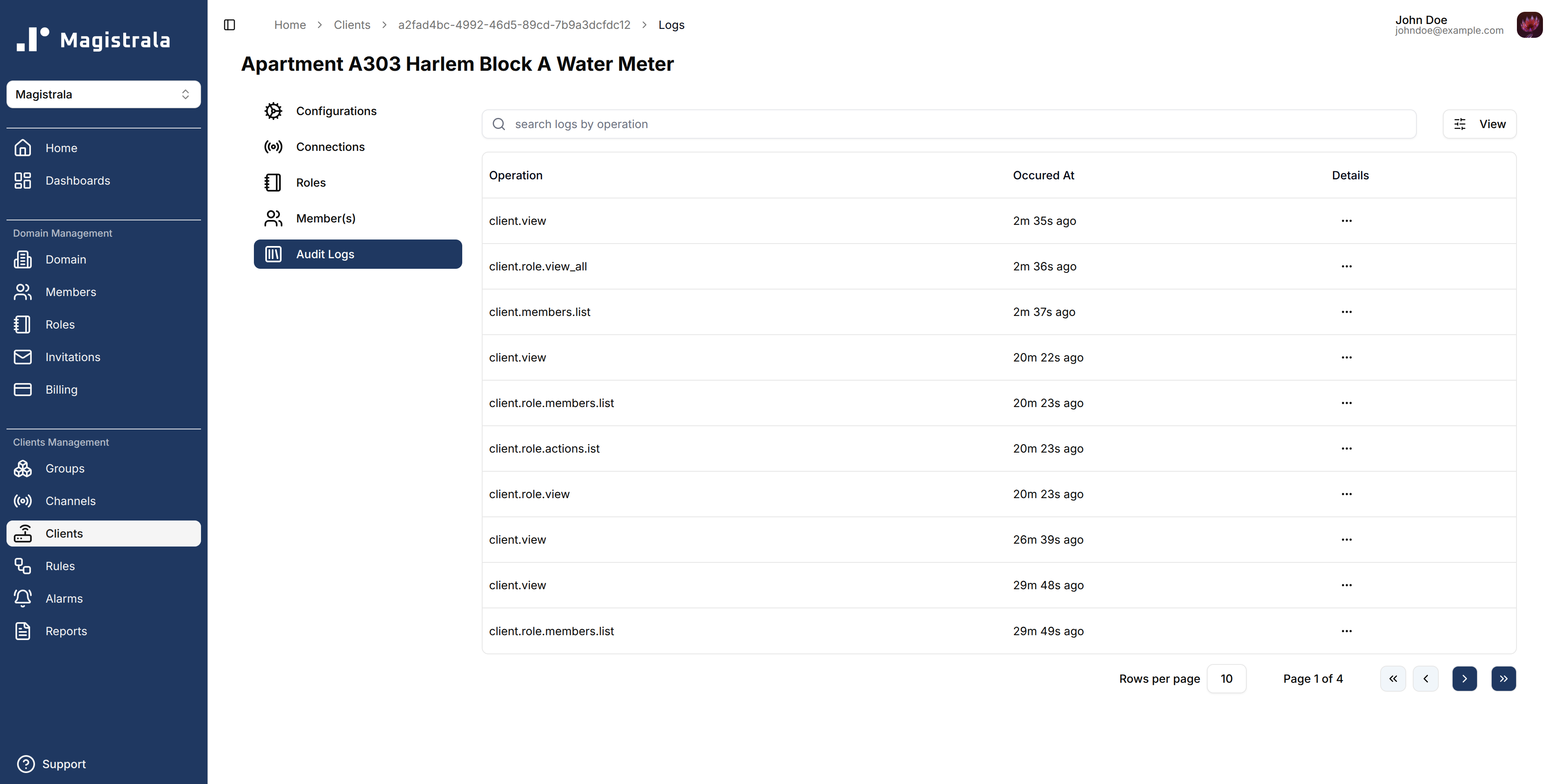

Audit logs track all client-related events, including creation, updates, disabling, connectivity and role changes

Each log entry displays the operation type, a timestamp, and optional details for deeper inspection.

You can search logs by operation type using the search input above the log table.

The most recent operations—such as client.view, client.create, and client.connect—are displayed at the top.

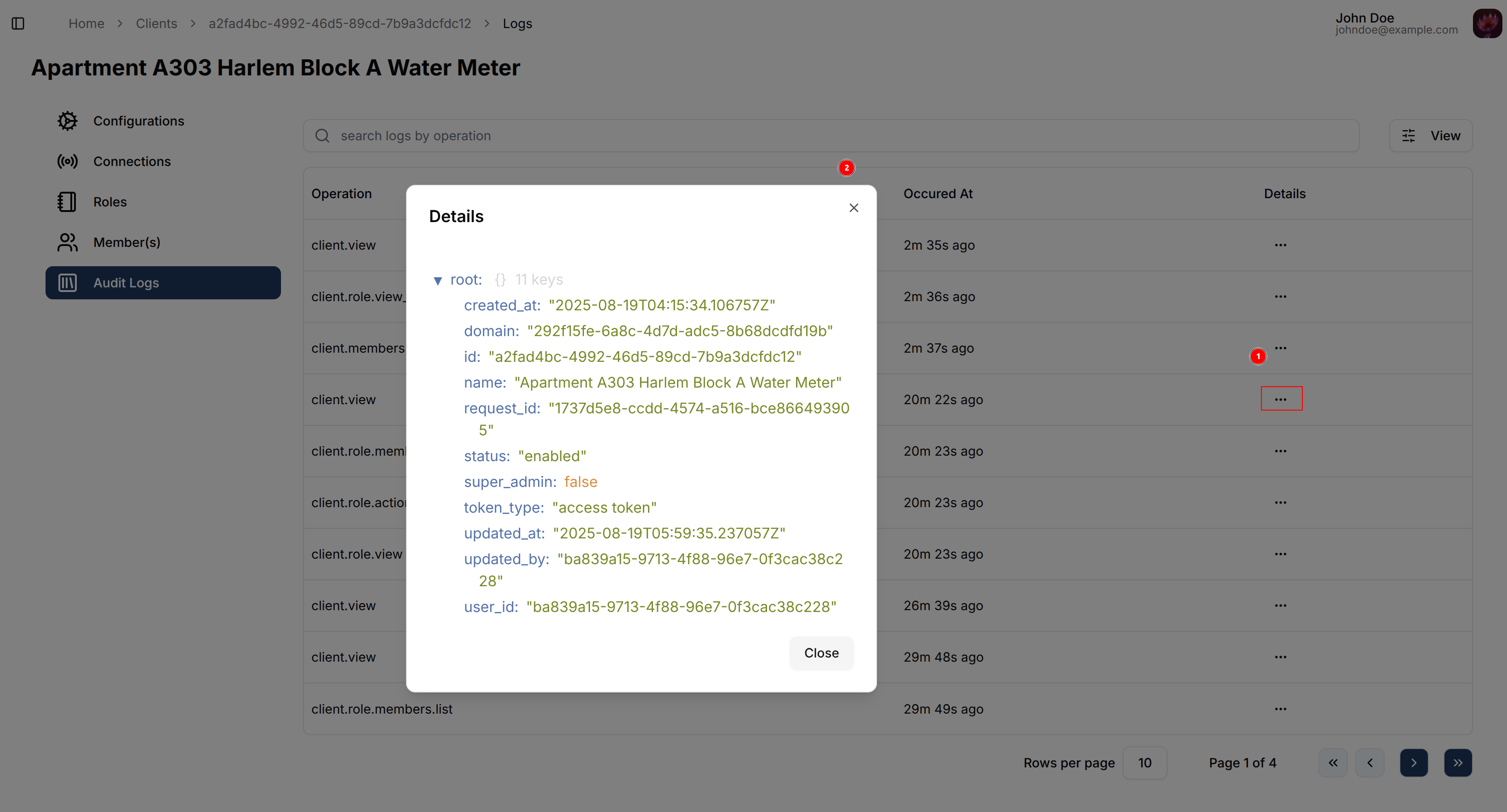

Clicking on the Details button at the end of each row opens a modal displaying structured details about the selected operation.

These details may include:

• created_at: Timestamp of creation
• updated_at: Timestamp of the last update
• id: Unique client ID
• name: Full client name, e.g., "Apartment A1 Floor 1 135 W 135th St Water Meter"
• status: Whether the client is "enabled" or "disabled"
• super_admin: Indicates if the client was flagged as a super admin
• domain: Associated domain UUID
• user_id: UUID of the user who performed the action
• updated_by: Same as user_id for updates
• request_id: Unique request UUID for tracing
• tags: A list of contextual tags like "Harlem Block A", "New York", "Water Meter"
• token_type: The type of token used for the action (e.g., "access token")

This enables users to trace changes, audit security, and diagnose issues efficiently.
